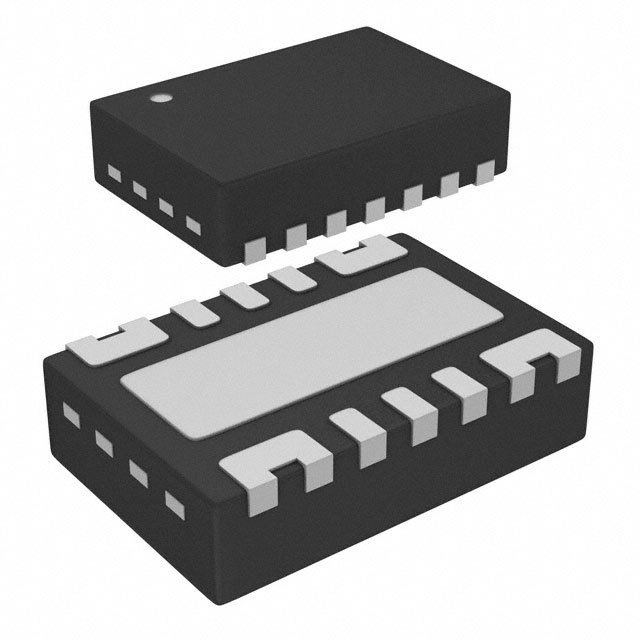

AOZ1331DI
IC PWR SWITCH N-CHAN 1:1 14DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The Alpha & Omega Semiconductor Inc. AOZ1331DI is a high-performance N-channel power switch designed for demanding applications. This general-purpose switch offers a 1:1 input-to-output ratio and a robust 6A maximum output current. Featuring load discharge and slew rate control, the AOZ1331DI ensures smooth power transitions. Its 20mOhm typical on-resistance minimizes power loss. The device operates within a load voltage range of 0.8V to 5.5V and is packaged in a compact 14-DFN (3x2) surface-mount configuration, supplied on tape and reel. This component is suitable for power distribution and load driving in various industries, including consumer electronics, industrial automation, and telecommunications. The interface is controlled via an ON/OFF signal.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 20mOhm |
| Input Type | - |
| Voltage - Load | 0.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 14-DFN (3x2) |
| Fault Protection | - |
