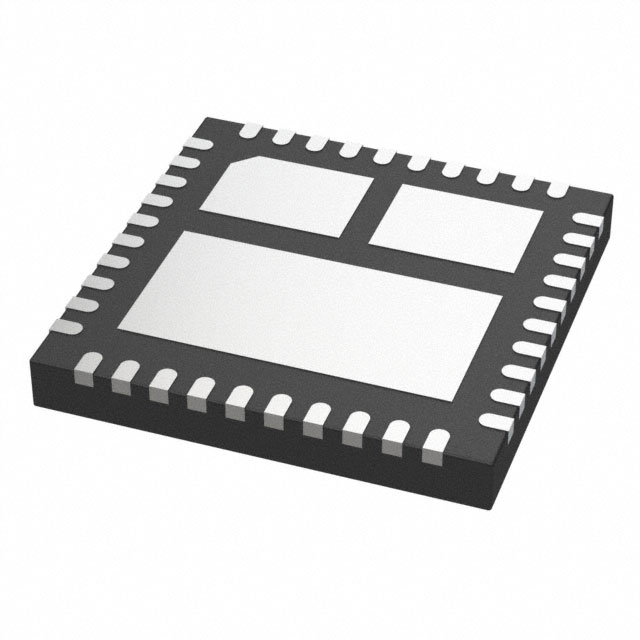

AOZ5166QI
60A/25V DRMOS POWER MODULE (PWM=Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AOZ5166QI is a 60A, 25V DrMOS power module designed for high-efficiency synchronous buck converter applications. This half-bridge driver features a 4.5V to 18V load voltage range and a 4.5V to 5.5V supply voltage. The device integrates a high-side and low-side MOSFET with a driver, offering a compact solution in a 40-QFN (6x6) exposed pad package. Key features include fault protection against shoot-through and undervoltage lockout (UVLO), a bootstrap circuit, and diode emulation for improved light-load efficiency. The AOZ5166QI supports PWM interface and is suitable for inductive and capacitive load types. Its robust design makes it ideal for demanding applications in automotive, industrial, and computing sectors. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 60A |
| Current - Peak Output | - |
| Technology | DrMOS |
| Voltage - Load | 4.5V ~ 18V |
| Supplier Device Package | 40-QFN (6x6) |
| Fault Protection | Shoot-Through, UVLO |
| Load Type | Inductive, Capacitive |
