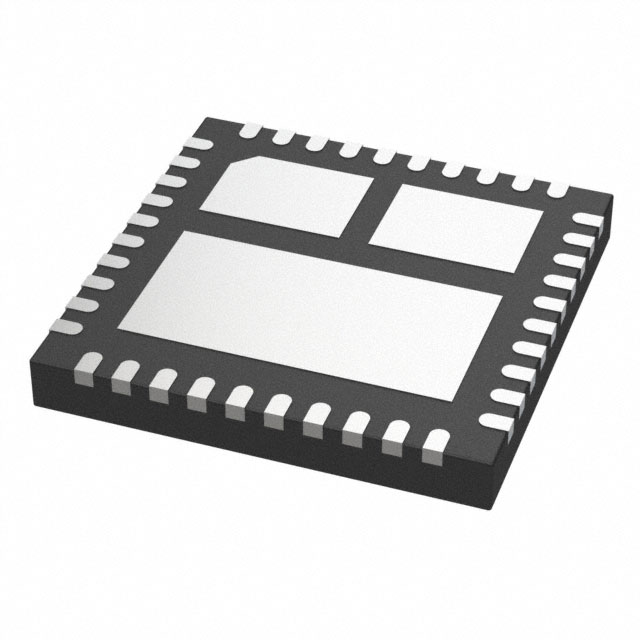

AOZ5016QI
25V/55A DRMOS 5V PWM IN QFN5X5Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver Synchronous Buck Converters DrMOS 31-QFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation |
| Packaging | Tape & Reel (TR) |
| Package / Case | 31-PowerVFQFN Module |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 55A |
| Current - Peak Output | 120A |
| Technology | DrMOS |
| Voltage - Load | 4.5V ~ 25V |
| Supplier Device Package | 31-QFN (5x5) |
| Fault Protection | Shoot-Through, UVLO |
| Load Type | Inductive, Capacitive |
