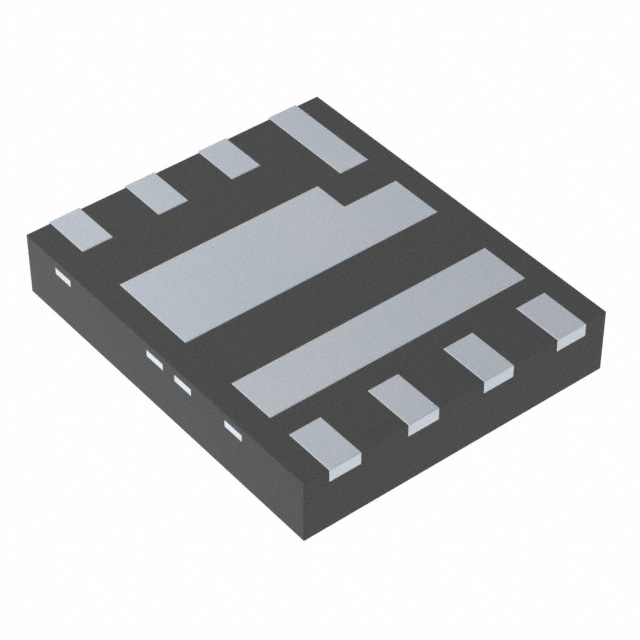

AONX38168
MOSFET 2N-CH 25V 25A/62A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 25V 25A (Ta), 62A (Tc), 50A (Ta), 85A (Tc) 3.1W (Ta), 20W (Tc), 3.2W (Ta), 69W (Tc) Surface Mount 8-DFN (5x6)
Additional Information
Series: XSPairFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3.1W (Ta), 20W (Tc), 3.2W (Ta), 69W (Tc) |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta), 62A (Tc), 50A (Ta), 85A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1150pF @ 12.5V, 4520pF @ 12.5V |
| Rds On (Max) @ Id, Vgs | 3.3mOhm @ 20A, 10V, 0.8mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V, 85nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA, 1.8V @ 250µA |
| Supplier Device Package | 8-DFN (5x6) |
Request a Quote
