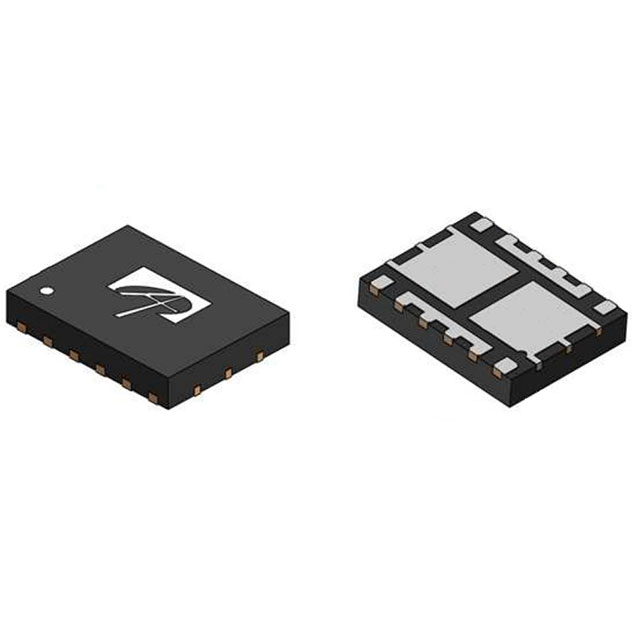

AONL32328
MOSFET 2N/2P-CH 30V 8A/7A 12DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. presents the AONL32328, a 30V MOSFET array featuring a 2N/2P-channel configuration in a compact 12-DFN-EP (4x3) surface-mount package. This device offers continuous drain currents of 8A for the N-channel and 7A for the P-channel, both rated at 25°C ambient. Key electrical characteristics include a maximum Rds On of 21mOhm at 8A for the N-channel and 27mOhm at 7A for the P-channel, with a gate drive of 10V. The input capacitance (Ciss) is specified at 395pF for the N-channel and 730pF for the P-channel, both at 15V Vds. This component is suitable for applications requiring efficient power switching and is commonly utilized in consumer electronics and power management systems. The operating temperature range is -55°C to 150°C (TJ), and it is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N and 2 P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.6W (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta), 7A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 395pF @ 15V, 730pF @ 15V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 8A, 10V, 27mOhm @ 7A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V, 24nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA, 2.6V @ 250µA |
| Supplier Device Package | 12-DFN-EP (4x3) |
