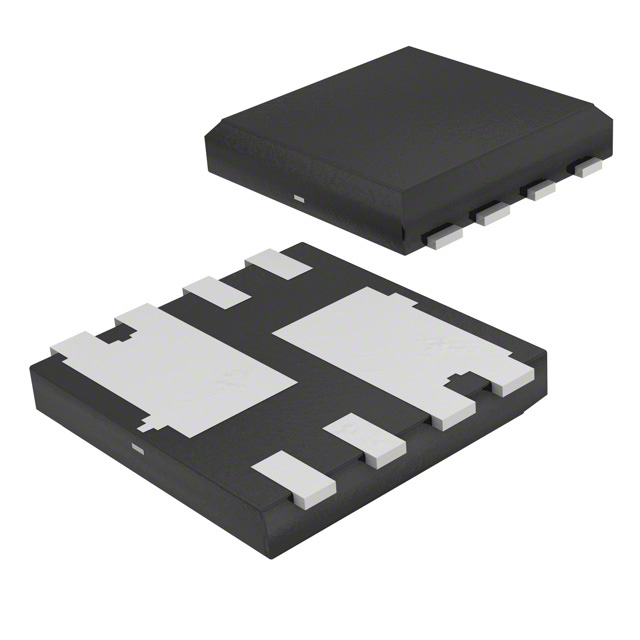

AON7804_101
MOSFET 2N-CH 30V 9A/22A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 9A (Ta), 22A (Tc) 3.1W (Ta), 17W (Tc) Surface Mount 8-DFN (3x3)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3.1W (Ta), 17W (Tc) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta), 22A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 888pF @ 15V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 8A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Supplier Device Package | 8-DFN (3x3) |
Request a Quote
