AON6992
MOSFET 2N-CH 30V 19A/31A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More

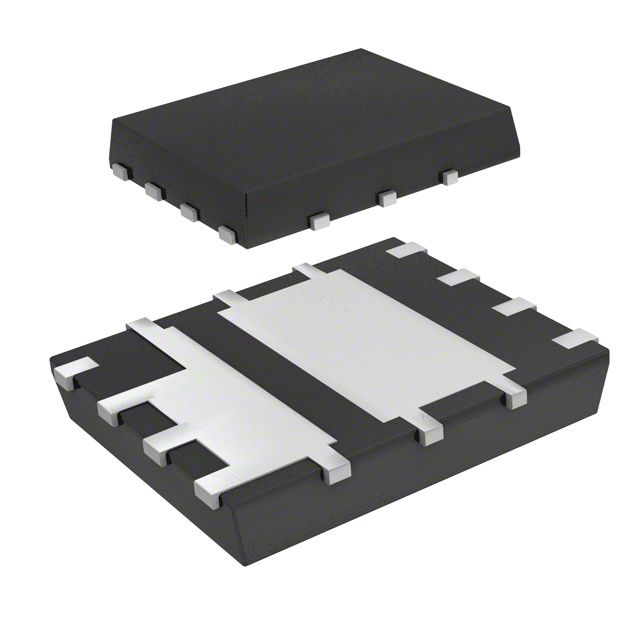

Alpha & Omega Semiconductor Inc. AON6992 is a 30V dual N-channel Power MOSFET array in an 8-DFN (5x6) package. This asymmetrical MOSFET configuration offers continuous drain currents of 19A and 31A at 25°C, with a low on-resistance of 5.2mOhm at 20A and 10V. Featuring logic-level gate drive, the AON6992 has a gate charge of 13nC (max) at 10V and input capacitance of 820pF (max) at 15V. The device is rated for a maximum power dissipation of 3.1W and operates across a temperature range of -55°C to 150°C. This component is commonly utilized in power management applications, including DC-DC converters and load switching, within the computing and consumer electronics sectors. Supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3.1W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 19A, 31A |
| Input Capacitance (Ciss) (Max) @ Vds | 820pF @ 15V |
| Rds On (Max) @ Id, Vgs | 5.2mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-DFN (5x6) |
