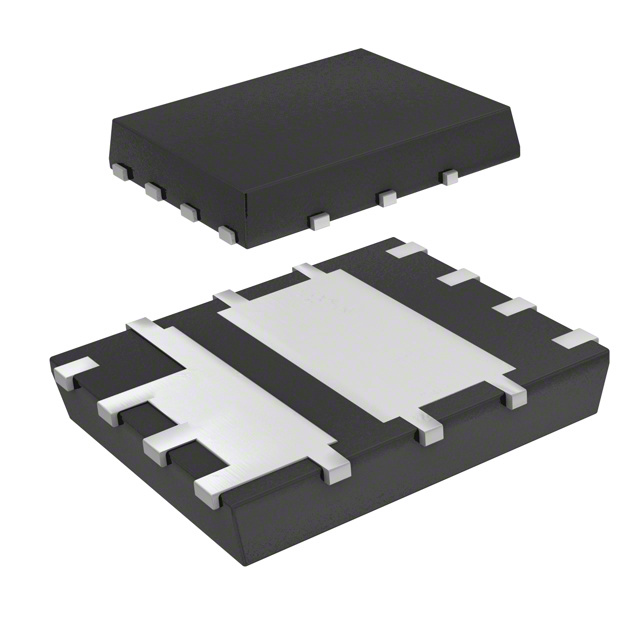

AON6912ALS_102
MOSFET 2N-CH 30V 52A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 10A (Ta), 34A (Tc), 13.8A (Ta), 52A (Tc) 1.9W (Ta), 22W (Tc), 2.1W (Ta), 30W (Tc) Surface Mount 8-DFN (5x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.9W (Ta), 22W (Tc), 2.1W (Ta), 30W (Tc) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 34A (Tc), 13.8A (Ta), 52A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 910pF @ 15V, 1300pF @ 15V |
| Rds On (Max) @ Id, Vgs | 13.7mOhm @ 10A, 10V, 7.3mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V, 20nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-DFN (5x6) |
