AON6884
MOSFET 2N-CH 40V 9A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More

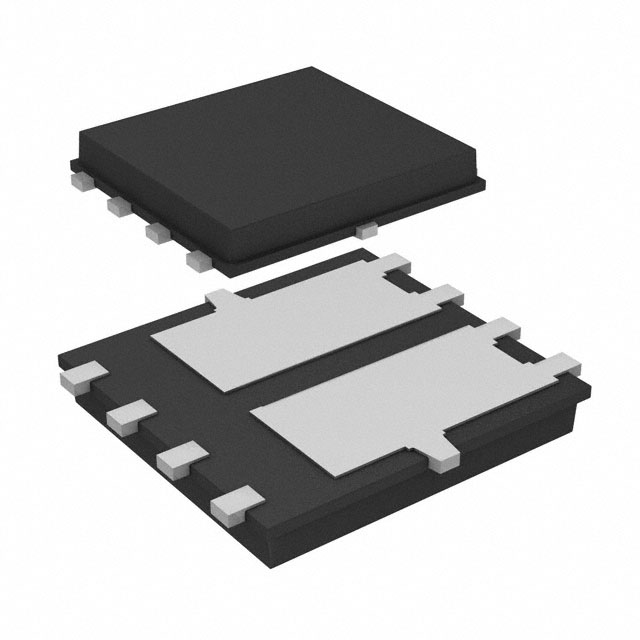

Mosfet Array 40V 9A 1.6W Surface Mount 8-DFN (5x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.6W |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 9A |
| Input Capacitance (Ciss) (Max) @ Vds | 1950pF @ 20V |
| Rds On (Max) @ Id, Vgs | 11.3mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 33nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Supplier Device Package | 8-DFN (5x6) |
