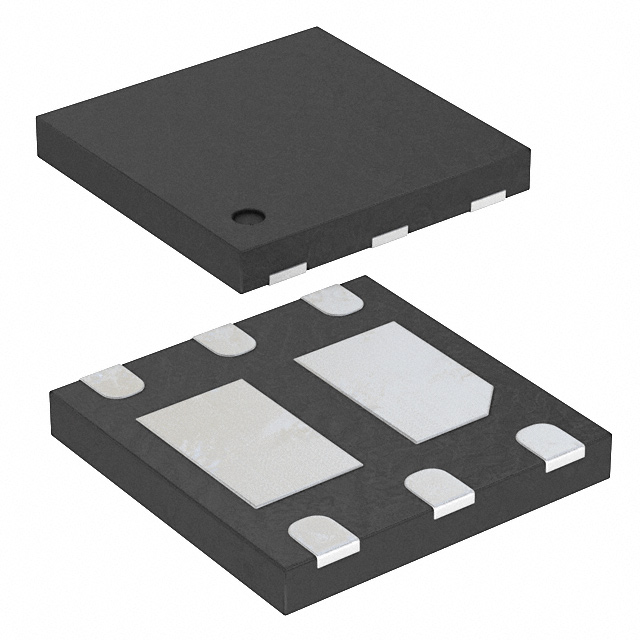

AON2801L#A
MOSFET 2P-CH 20V 3A 6DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AON2801L-A is a 20V, dual P-channel MOSFET array designed for efficient power management. This device features a low Rds(on) of 120mOhm at 3A and 4.5V Vgs, coupled with a 3A continuous drain current capability. The logic-level gate enhances compatibility with a wide range of control signals. With a gate charge of 6.5nC at 4.5V, it offers optimized switching performance. The 6-WDFN (2x2) package with an exposed pad facilitates robust thermal management, essential for applications demanding high power density, up to 1.5W. This MOSFET array is suitable for use in consumer electronics, industrial automation, and battery management systems. Operating temperature range is -55°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.5W |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3A |
| Input Capacitance (Ciss) (Max) @ Vds | 700pF @ 10V |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 3A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 6.5nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-DFN (2x2) |
