AOD604

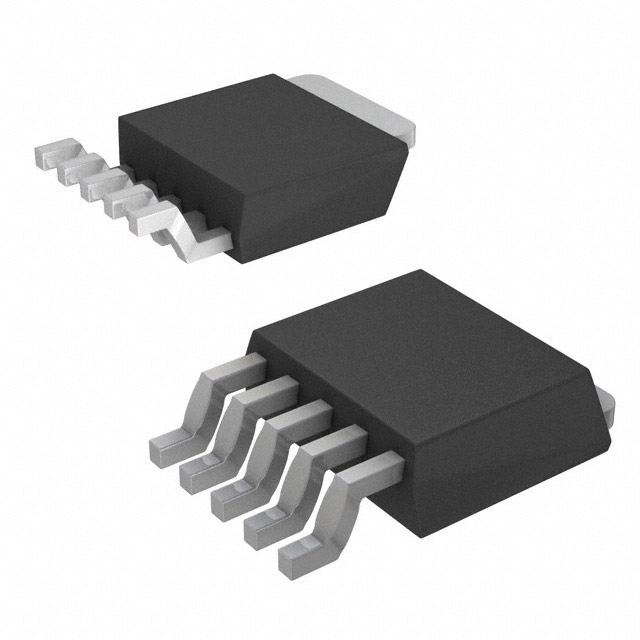

MOSFET N/P-CH 40V 8A TO252-5Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AOD604 is a complementary N-channel and P-channel MOSFET array designed for power management applications. This device features a 40V breakdown voltage and a continuous drain current capability of 8A per channel at 25°C. The AOD604 is constructed using advanced MOSFET technology, offering a low Rds(on) of 33mOhm at 8A and 10V Vgs. With a logic-level gate, it is suitable for direct interface with microcontrollers. Key electrical parameters include a gate charge (Qg) of 9.2nC (max) at 10V and input capacitance (Ciss) of 404pF (max) at 20V. The component is housed in a TO-252-5 (DPAK) surface-mount package and supports a maximum power dissipation of 1.6W and 1.7W. The operating temperature range is -55°C to 175°C (TJ). This MOSFET array finds application in various sectors including automotive, industrial power control, and consumer electronics. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.6W, 1.7W |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 8A |
| Input Capacitance (Ciss) (Max) @ Vds | 404pF @ 20V |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 8A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 9.2nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | TO-252-5 |
