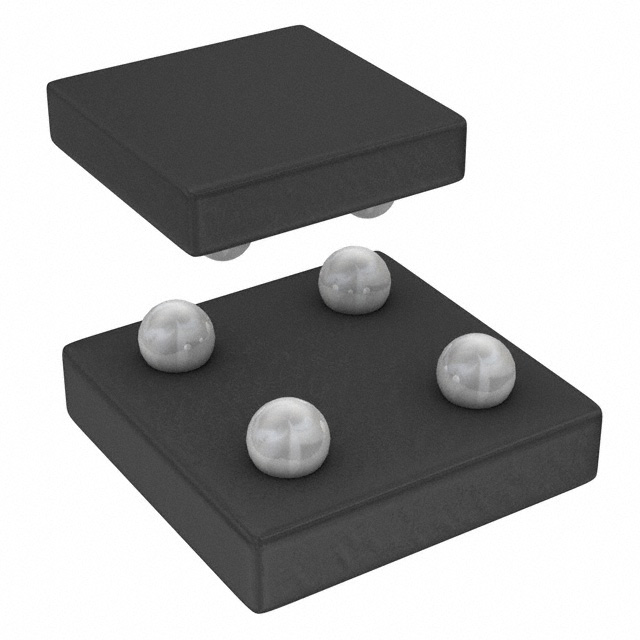

AOC2802_001
MOSFET 2N-CH 20V 6A 4WLCSPManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 6A 1.3W Surface Mount 4-WLCSP (1.57x1.57)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.3W |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 6A |
| Input Capacitance (Ciss) (Max) @ Vds | 1200pF @ 10V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 3A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 10.4nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | 4-WLCSP (1.57x1.57) |
