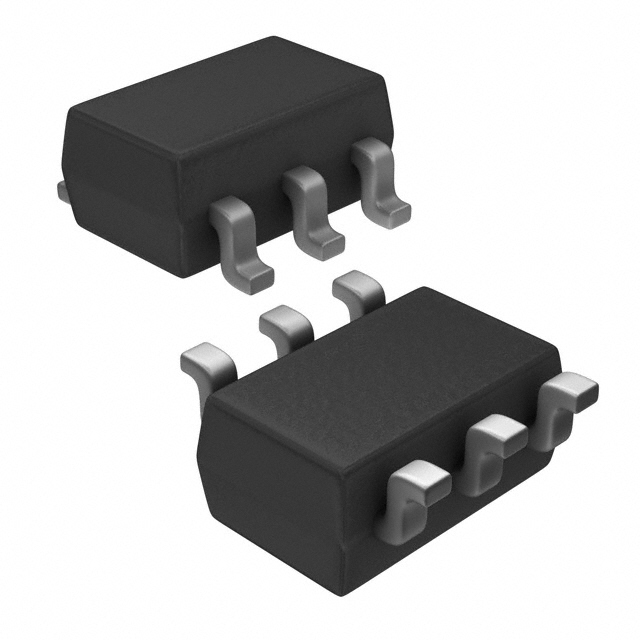

AO6604
MOSFET N/P-CH 20V 3.4A 6TSOPManufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 3.4A, 2.5A 1.1W Surface Mount 6-TSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | SC-74, SOT-457 |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel Complementary |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.1W |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.4A, 2.5A |
| Input Capacitance (Ciss) (Max) @ Vds | 320pF @ 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 3.4A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 3.8nC @ 4.5V |
| FET Feature | Logic Level Gate, 4.5V Drive |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-TSOP |
Request a Quote
