AO5804EL

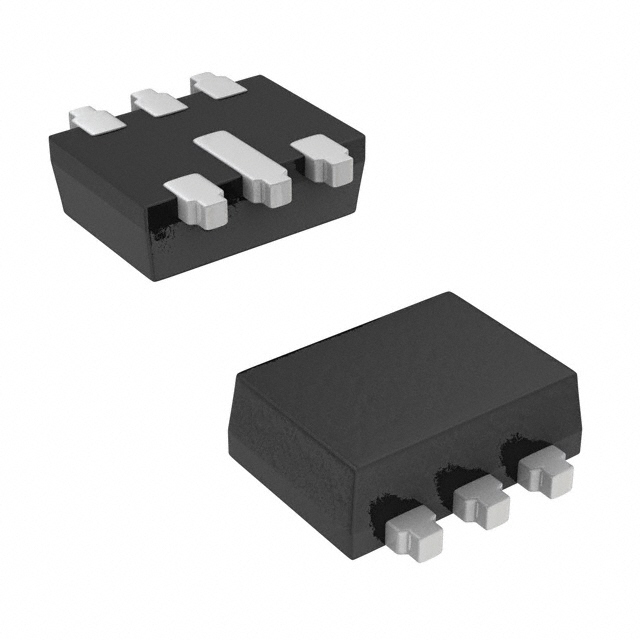

MOSFET 2N-CH 20V 0.5A SC89-6Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AO5804EL is a dual N-channel MOSFET array with a Drain-Source Voltage (Vdss) of 20V. This component features a continuous Drain current (Id) of 500mA at 25°C and a maximum on-resistance (Rds On) of 550mOhm at 500mA and 4.5V Vgs. The device offers a gate charge (Qg) of 1nC maximum at 4.5V and an input capacitance (Ciss) of 45pF maximum at 10V Vds. Packaged in an SC-89-6 (SOT-563, SOT-666) surface mount configuration, the AO5804EL has a maximum power dissipation of 280mW and an operating temperature range of -55°C to 150°C. This MOSFET array is suitable for applications in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 280mW |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 500mA |
| Input Capacitance (Ciss) (Max) @ Vds | 45pF @ 10V |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 500mA, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 1nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SC-89-6 |
