AO5803E

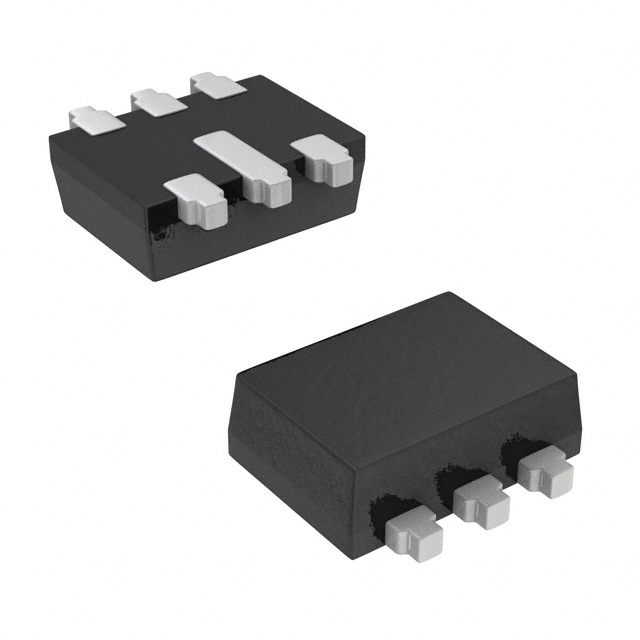

MOSFET 2P-CH 20V SC89-6Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AO5803E is a dual P-channel MOSFET array designed for surface mount applications. This component features a 20V drain-to-source voltage (Vdss) and a maximum power dissipation of 400mW. The AO5803E offers a low Rds(On) of 800mOhm at 600mA and 4.5V, along with a logic-level gate feature. Input capacitance (Ciss) is rated at 100pF at 10V. The device is packaged in an SC-89-6 (SOT-563, SOT-666) and supplied on tape and reel. Operating temperature range is -50°C to 150°C. This MOSFET array is commonly utilized in portable electronics and power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 400mW |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | 100pF @ 10V |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 600mA, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | SC-89-6 |
