AOZ6763DI
IC REG BUCK ADJUSTABLE 3A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More

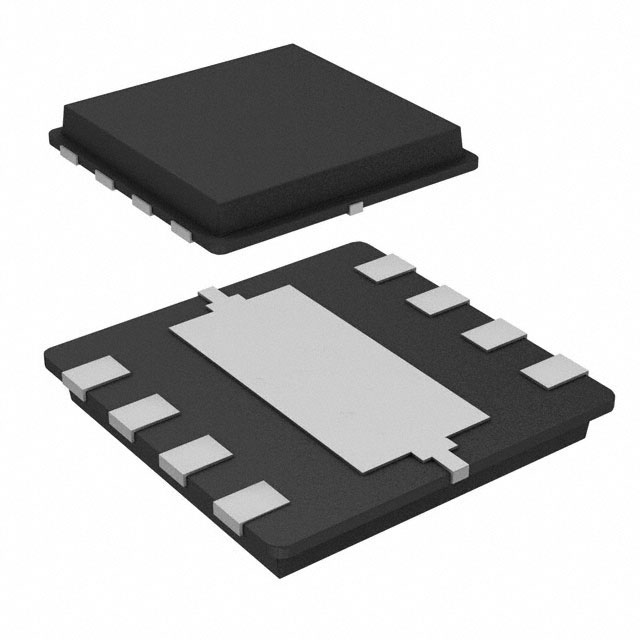

The Alpha & Omega Semiconductor Inc. AOZ6763DI is a highly efficient EZBuck™ series synchronous buck converter. This adjustable step-down regulator provides a 3A output current and features an integrated synchronous rectifier for optimized performance. Operating with an input voltage range of 4.5V to 18V, it delivers an adjustable output voltage from 0.6V up to 11.7V. The AOZ6763DI utilizes a 1.25MHz switching frequency, contributing to its compact design and excellent transient response. Its robust construction, including an 8-DFN-EP (3x3) package with an exposed pad for enhanced thermal management, makes it suitable for demanding applications in the industrial, consumer electronics, and telecommunications sectors. The device operates reliably within a temperature range of -40°C to 85°C (TA).
Additional Information
Series: EZBuck™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Leads Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.25MHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck |
| Supplier Device Package | 8-DFN-EP (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 11.7V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
