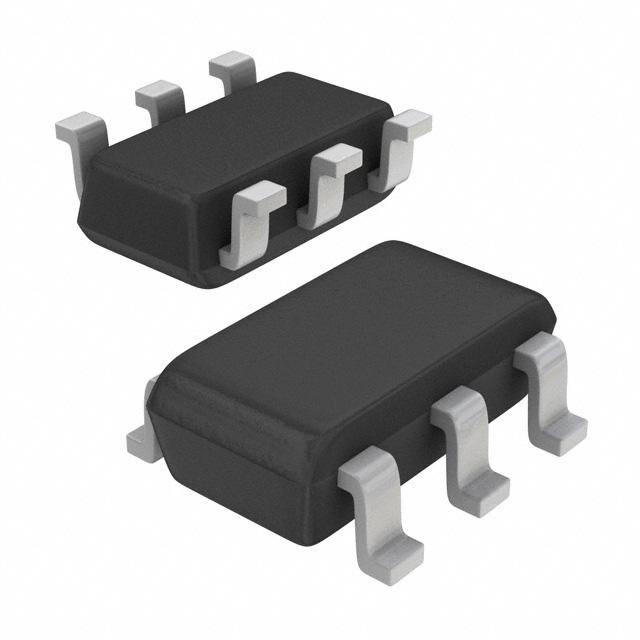

AOZ6683CI
IC REG BUCK ADJ 3A TSOT23-6Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. EZBuck™ AOZ6683CI is a 3A adjustable output step-down switching regulator. This highly efficient buck converter operates with a switching frequency of 750kHz, facilitating smaller external component selection. It features a positive adjustable output voltage ranging from 0.8V up to 6V, with a maximum input voltage capability of 18V and a minimum input of 4.5V. The AOZ6683CI integrates a synchronous rectifier, enhancing power conversion efficiency. Designed for surface mounting, it is supplied in a TSOT-23-6 Thin package, suitable for high-density applications. This component is widely utilized in consumer electronics, computing, and industrial power supply designs.
Additional Information
Series: EZBuck™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 750kHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck |
| Supplier Device Package | TSOT-23-6 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 6V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
