AOZ1915DI
IC REG BOOST ADJ 1.5A 12DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. EZBoost series AOZ1915DI is a highly efficient, adjustable positive boost switching regulator. This device offers a versatile solution for power conversion needs, capable of outputting voltages up to 22V from an input range of 2.7V to 5.5V. With a maximum switch current of 1.5A and dual selectable switching frequencies of 600kHz and 1.2MHz, the AOZ1915DI provides a balance of performance and component size. Its 12-VFDFN exposed pad package ensures excellent thermal management for surface mount applications. This regulator is well-suited for applications in consumer electronics, industrial automation, and portable devices.
Additional Information
Series: EZBoostRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

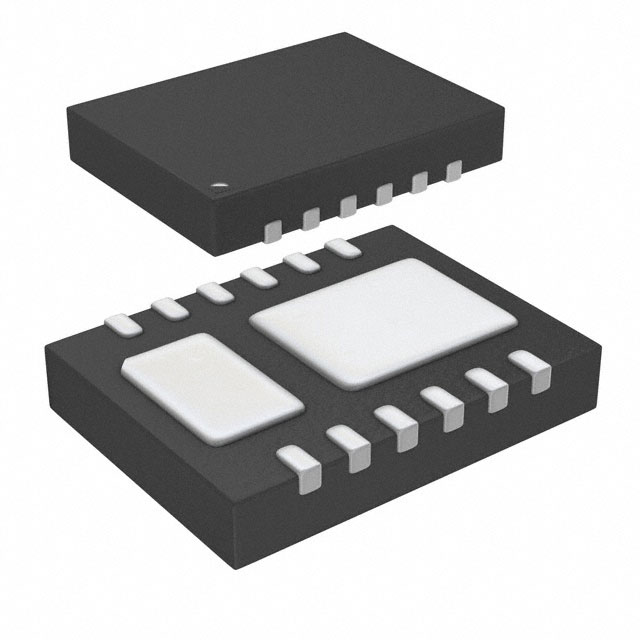

| Package / Case | 12-VFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 1.5A (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz, 1.2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 12-DFN (4x3) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 22V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 2.7V |
