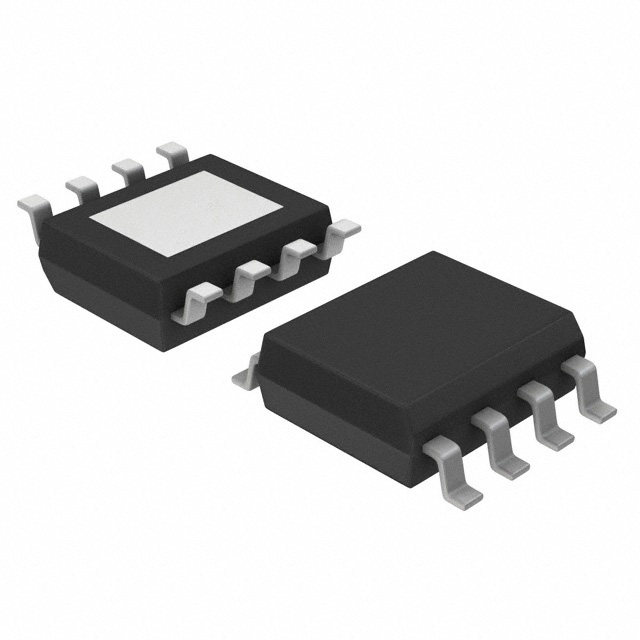

AOZ1284PI-1
IC REG BUCK ADJUSTABLE 4A 8SOManufacturer: Alpha & Omega Semiconductor Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Alpha & Omega Semiconductor Inc. AOZ1284PI-1 is a high-performance EZBuck™ series buck switching regulator. This adjustable positive output device offers a robust 4A output current capability, with an output voltage range from 0.8V to 30.6V. Featuring a wide input voltage range of 3V to 36V, it supports switching frequencies from 200kHz to 1MHz, enabling efficient power conversion. The AOZ1284PI-1 is housed in an 8-SOIC (0.154"", 3.90mm Width) Exposed Pad package, suitable for surface mounting applications. Its non-synchronous buck topology and single positive output configuration make it ideal for power management solutions in industrial, automotive, and consumer electronics. The component operates within an ambient temperature range of -40°C to 85°C and is supplied on tape and reel.
Additional Information
Series: EZBuck™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 1MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 8-SO-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 30.6V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.8V |
