AOZ1233QI-01
IC REG BUCK ADJ 8A 30QFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Alpha & Omega Semiconductor Inc. EZBuck™ series AOZ1233QI-01 is a high-performance, adjustable output buck switching regulator. This monolithic IC is designed for step-down voltage conversion, offering a robust 8A output current capability. It features a wide input voltage range from 2.7V to 28V, with an adjustable output voltage from 0.8V up to 23.8V, providing significant design flexibility. The device operates with a switching frequency adjustable from 100kHz to 1MHz, allowing optimization for efficiency and component size. Its integrated synchronous rectifier enhances efficiency, minimizing power loss. The AOZ1233QI-01 is housed in a compact 30-VFQFN exposed pad package, suitable for surface mount applications. This component is commonly utilized in power supply designs for computing, industrial, and consumer electronics.
Additional Information
Series: EZBuck™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

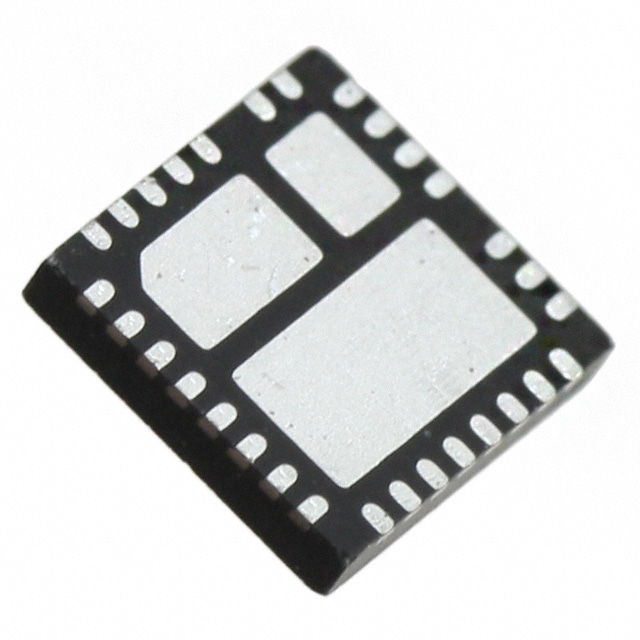

| Package / Case | 30-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 8A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1MHz |
| Voltage - Input (Max) | 28V |
| Topology | Buck |
| Supplier Device Package | 30-QFN (5x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 23.8V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.8V |
