AOZ1038DI-1
IC REG BUCK ADJUSTABLE 6A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AOZ1038DI-1 is a high-performance, adjustable output buck switching regulator IC from the EZBuck™ series. This device offers a robust step-down conversion capability, supporting an output current of up to 6A. It operates with a switching frequency of 450kHz, enabling efficient power conversion with a compact solution. The AOZ1038DI-1 features an adjustable output voltage range from 0.8V to 16.2V, powered by an input voltage range of 4.5V to 18V. Its integrated synchronous rectifier contributes to enhanced efficiency. The IC is housed in an 8-PowerVDFN package, suitable for surface mount applications. This component is commonly utilized in industrial, consumer electronics, and communication systems requiring reliable DC-DC power conversion. It is supplied on tape and reel.
Additional Information
Series: EZBuck™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

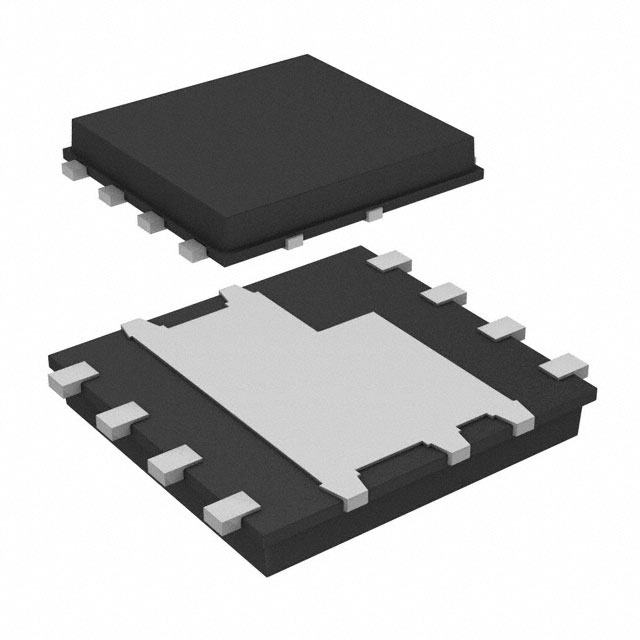

| Package / Case | 8-PowerVDFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 450kHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck |
| Supplier Device Package | 8-DFN-EP (5.2x5.55) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 16.2V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
