AOZ1025DIL
IC REG BUCK ADJ 8A 16DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. EZBuck™ AOZ1025DIL is an adjustable output, step-down switching regulator IC. This device features a current mode control architecture, capable of delivering up to 8A of output current. Operating with an input voltage range of 4.75V to 16V, the AOZ1025DIL provides a flexible output voltage from 0.8V up to the input voltage. Its 500kHz switching frequency contributes to efficient power conversion and allows for smaller external component selection. The regulator is housed in a 16-VFDFN Exposed Pad package, designed for surface mounting. Typical applications include power supplies for networking equipment, industrial automation, and consumer electronics. The device operates across a temperature range of -40°C to 85°C.
Additional Information
Series: EZBuck™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

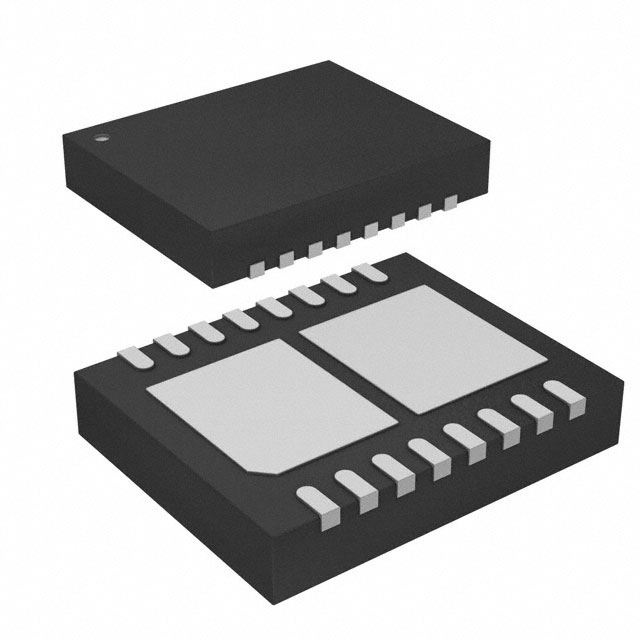

| Package / Case | 16-VFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 8A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Voltage - Input (Max) | 16V |
| Topology | Buck |
| Supplier Device Package | 16-DFN (5x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 16V |
| Voltage - Input (Min) | 4.75V |
| Voltage - Output (Min/Fixed) | 0.8V |
