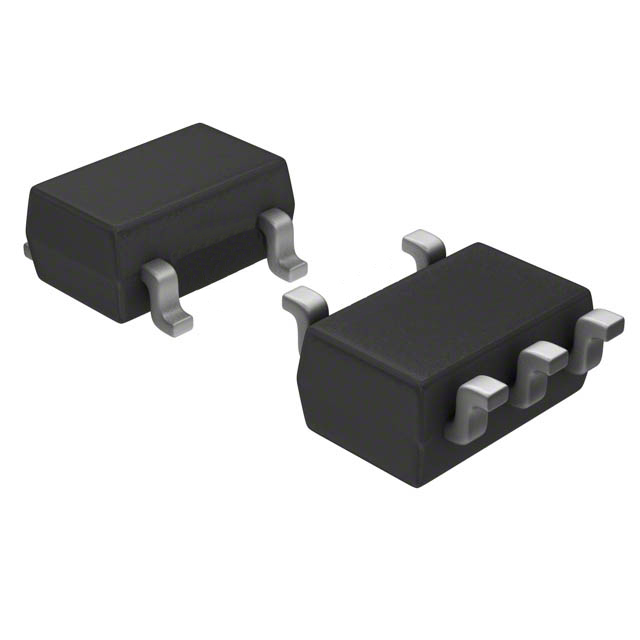

AOZ6115CI
IC SWITCH SPST-NOX1 3OHM SOT23-5Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Alpha & Omega Semiconductor Inc. AOZ6115CI is a single-pole, single-throw (SPST) normally open analog switch. This component features a low on-state resistance of 3 Ohms, ideal for signal routing applications. It operates with a single supply voltage ranging from 1.65V to 5.5V. The device offers a -3dB bandwidth of 300MHz, supporting high-frequency signal transfers. With a channel capacitance of 7.5pF and a charge injection of 2pC, it is suitable for use in consumer electronics and industrial automation. The AOZ6115CI is supplied in a SOT-23-5 package and is available on tape and reel for automated assembly. Its operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 3Ohm |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | SOT-23-5 |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 2pC |
| Crosstalk | - |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| Channel Capacitance (CS(off), CD(off)) | 7.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 1 |
Request a Quote
Clients Also Buy

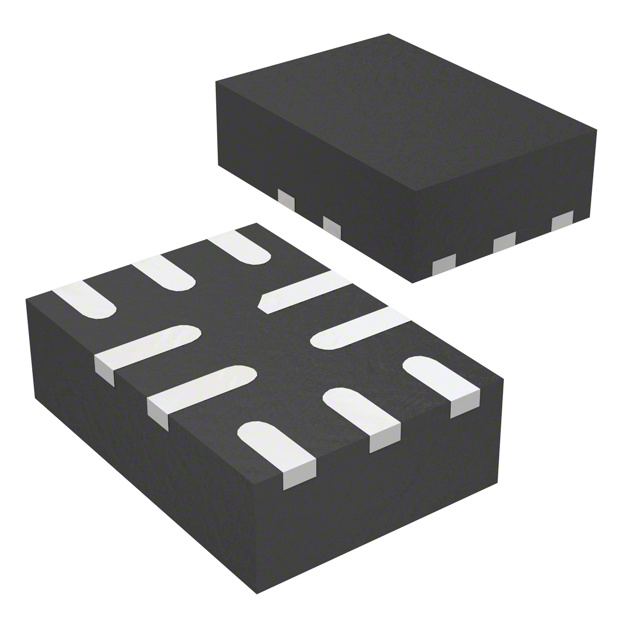

AOZ6237QT#A
