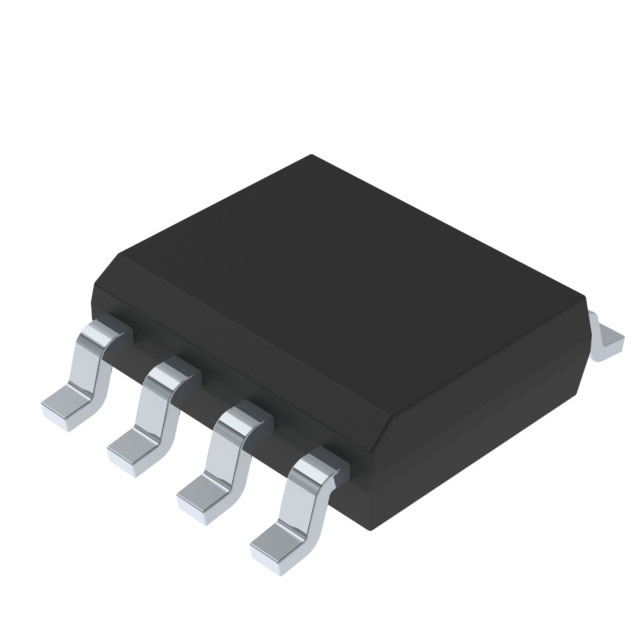

productimage

M45PE20-VMN6P

IC FLASH 2MBIT SPI 75MHZ 8SO

Manufacturer: Alliance Memory, Inc.

Categories: Memory

Quality Control: Learn More

Alliance Memory, Inc. M45PE20-VMN6P is a 2Mbit NOR Flash memory integrated circuit featuring an SPI interface for high-speed data transfer up to 75 MHz. This non-volatile memory component is organized as 256K x 8 and operates from a supply voltage range of 2.7V to 3.6V. Designed for surface mount applications, it comes in an 8-SOIC package (0.154", 3.90mm width). The M45PE20-VMN6P offers a word/page write cycle time of 3ms and is suitable for operation across a temperature range of -40°C to 85°C. Its robust design and performance characteristics make it a valuable component for applications in industrial control, consumer electronics, and automotive systems.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 5 week(s)Product Status: ActivePackaging: Tube
Technical Details:
PackagingTube
Package / Case8-SOIC (0.154"", 3.90mm Width)
Mounting TypeSurface Mount
Memory Size2Mbit
Memory TypeNon-Volatile
Operating Temperature-40°C ~ 85°C (TA)
Voltage - Supply2.7V ~ 3.6V
TechnologyFLASH - NOR
Clock Frequency75 MHz
Memory FormatFLASH
Supplier Device Package8-SO
Write Cycle Time - Word, Page3ms
Memory InterfaceSPI
Memory Organization256K x 8
ProgrammableNot Verified
