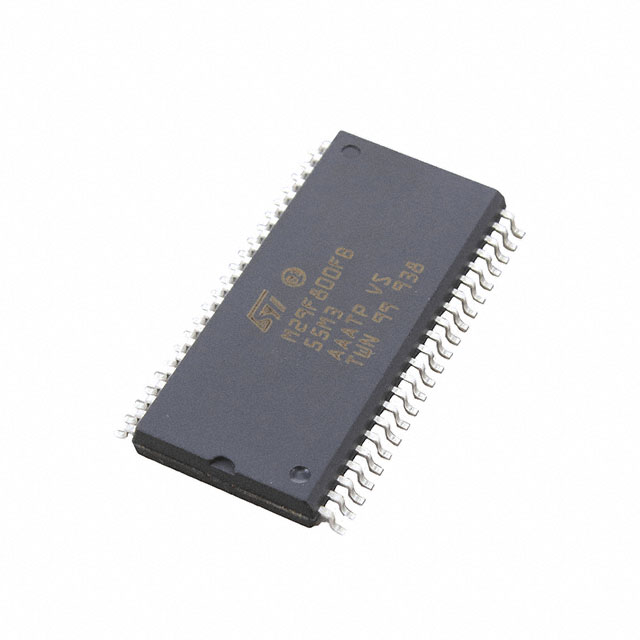

M29F800FB55M3F2
IC FLASH 8MBIT PARALLEL 44SOManufacturer: Alliance Memory, Inc.
Categories: Memory
Quality Control: Learn More
Alliance Memory, Inc. M29F800FB55M3F2 is a NOR Flash memory component offering 8Mbit of non-volatile storage. This device features a parallel interface with an access time of 55 ns and a write cycle time of 55 ns. The memory organization is available as 1M x 8 or 512K x 16. Designed for surface mounting, it is housed in a 44-SOIC package, specifically a 44-SO (0.496", 12.60mm Width). Operating over a temperature range of -40°C to 125°C (TA) and requiring a supply voltage of 4.5V to 5.5V, this component is qualified to AEC-Q100 standards, making it suitable for automotive applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-SOIC (0.496"", 12.60mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 8Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | FLASH - NOR |
| Memory Format | FLASH |
| Supplier Device Package | 44-SO |
| Grade | Automotive |
| Write Cycle Time - Word, Page | 55ns |
| Access Time | 55 ns |
| Memory Organization | 1M x 8, 512K x 16 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
