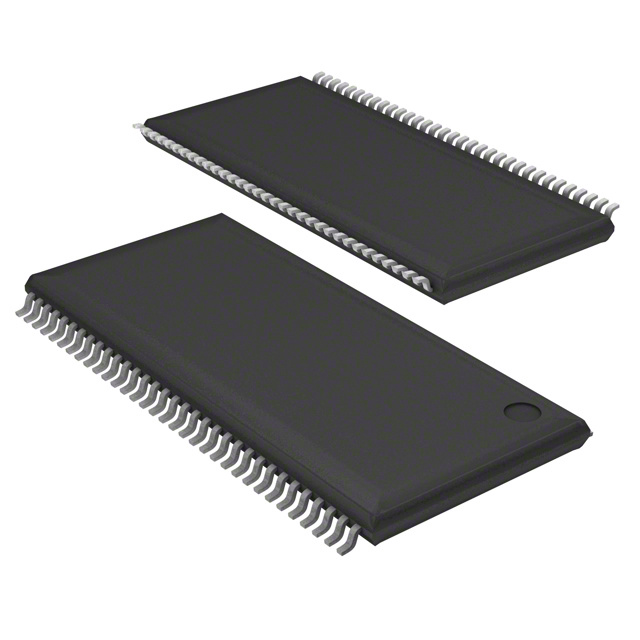

AS4C32M16D1-5TCN
IC DRAM 512MBIT PAR 66TSOP IIManufacturer: Alliance Memory, Inc.
Categories: Memory
Quality Control: Learn More
Alliance Memory, Inc. AS4C32M16D1-5TCN is a 512Mbit Synchronous Dynamic Random-Access Memory (SDRAM) component. This component operates at a clock frequency of 200 MHz with an access time of 700 ps. The memory organization is 32M x 16, utilizing a parallel interface. Designed for surface mount applications, it is supplied in a 66-TSOP II package. The operating voltage range is 2.3V to 2.7V, and it is rated for an operating temperature range of 0°C to 70°C. This memory device is commonly found in applications such as networking equipment, industrial control systems, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 66-TSSOP (0.400"", 10.16mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 512Mbit |
| Memory Type | Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 2.3V ~ 2.7V |
| Technology | SDRAM - DDR |
| Clock Frequency | 200 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 66-TSOP II |
| Write Cycle Time - Word, Page | 15ns |
| Memory Interface | Parallel |
| Access Time | 700 ps |
| Memory Organization | 32M x 16 |
| Programmable | Not Verified |
