AS4C256M8D3LC-12BIN
IC DRAM 2GBIT PARALLEL 78FBGAManufacturer: Alliance Memory, Inc.
Categories: Memory
Quality Control: Learn More

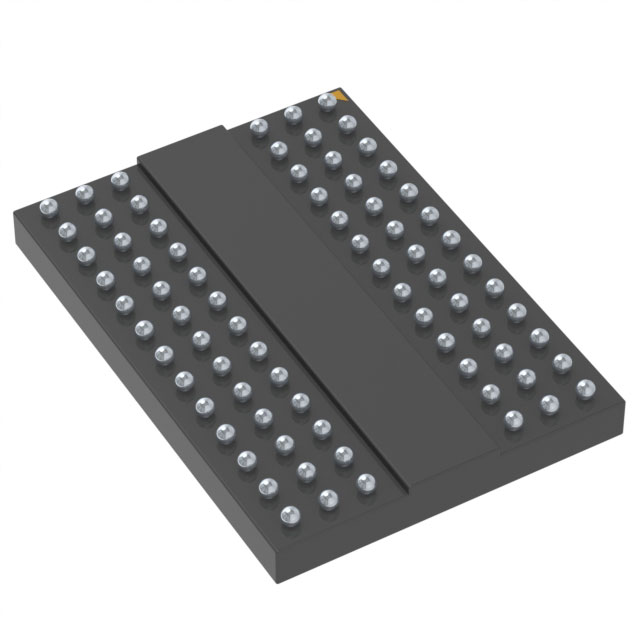

Alliance Memory, Inc. AS4C256M8D3LC-12BIN is a 2Gbit, AEC-Q100 qualified, DDR3L SDRAM memory component. This device offers a parallel memory interface with an 800 MHz clock frequency and a 20 ns access time. The memory organization is 256M x 8, providing a total capacity of 2 Gbits. Designed for surface mount applications, it is packaged in a 78-FBGA (7.5x10.5) with a supply voltage range of 1.283V to 1.45V. The operating temperature range is -40°C to 95°C (TC). This component is suitable for demanding automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 78-VFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 2Gbit |
| Memory Type | Volatile |
| Operating Temperature | -40°C ~ 95°C (TC) |
| Voltage - Supply | 1.283V ~ 1.45V |
| Technology | SDRAM - DDR3L |
| Clock Frequency | 800 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 78-FBGA (7.5x10.5) |
| Grade | Automotive |
| Write Cycle Time - Word, Page | 15ns |
| Memory Interface | Parallel |
| Access Time | 20 ns |
| Memory Organization | 256M x 8 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
