AS4C256M8D3LB-12BIN
IC DRAM 2GBIT PARALLEL 78FBGAManufacturer: Alliance Memory, Inc.
Categories: Memory
Quality Control: Learn More

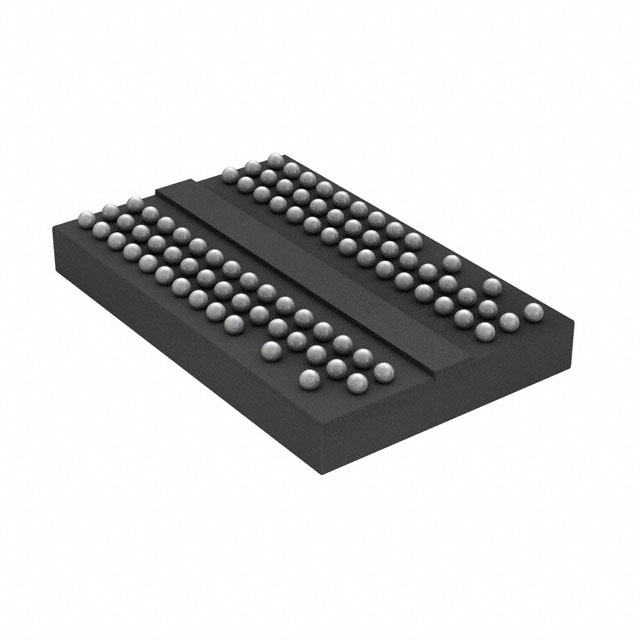

Alliance Memory, Inc. AS4C256M8D3LB-12BIN is a 2 Gigabit DDR3L SDRAM component. This device features a parallel memory interface, organized as 256M x 8, delivering high-speed data access with a clock frequency of 800 MHz and an access time of 20 ns. The memory operates with a supply voltage range of 1.283V to 1.45V, supporting low-power applications. Its 78-FBGA (8x10.5) package is suitable for surface mount applications. With a typical write cycle time of 15 ns for word and page operations, this component is designed for demanding applications in areas such as networking, computing, and consumer electronics. The operating temperature range is -40°C to 95°C (TC).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 78-VFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 2Gbit |
| Memory Type | Volatile |
| Operating Temperature | -40°C ~ 95°C (TC) |
| Voltage - Supply | 1.283V ~ 1.45V |
| Technology | SDRAM - DDR3L |
| Clock Frequency | 800 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 78-FBGA (8x10.5) |
| Write Cycle Time - Word, Page | 15ns |
| Memory Interface | Parallel |
| Access Time | 20 ns |
| Memory Organization | 256M x 8 |
| Programmable | Not Verified |
