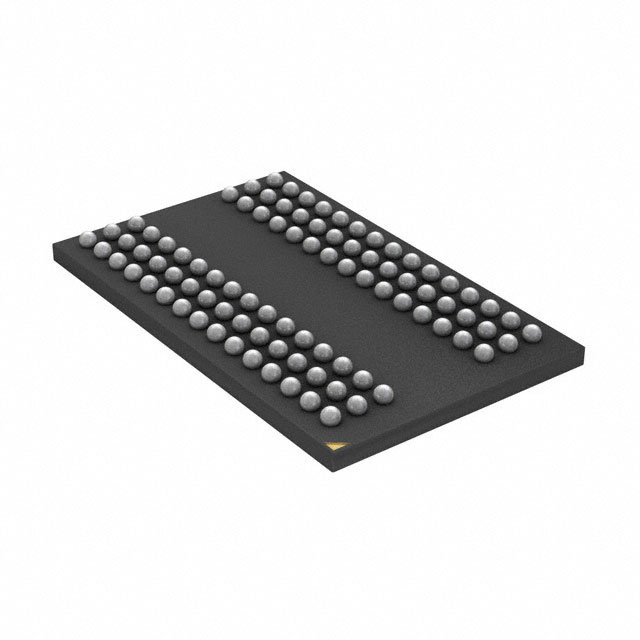

AS4C16M32MSB-6BIN
IC DRAM 512MBIT PARALLEL 90FBGAManufacturer: Alliance Memory, Inc.
Categories: Memory
Quality Control: Learn More
Alliance Memory, Inc. AS4C16M32MSB-6BIN is a 512Mbit SDRAM memory component featuring a parallel interface. This device operates at a clock frequency of 166 MHz with an access time of 5.5 ns. The memory organization is 16M x 32, providing a substantial capacity for data storage. Designed for surface mounting, it utilizes a 90-FBGA (8x13) package. The operating voltage range is 1.7V to 1.95V, and it supports an industrial operating temperature range of -40°C to 85°C. This component is suitable for applications requiring high-speed volatile memory, including telecommunications, networking infrastructure, and industrial control systems. The write cycle time for word and page operations is 15 ns.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 90-VFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 512Mbit |
| Memory Type | Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 1.95V |
| Technology | SDRAM |
| Clock Frequency | 166 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 90-FBGA (8x13) |
| Write Cycle Time - Word, Page | 15ns |
| Memory Interface | Parallel |
| Access Time | 5.5 ns |
| Memory Organization | 16M x 32 |
| Programmable | Not Verified |
