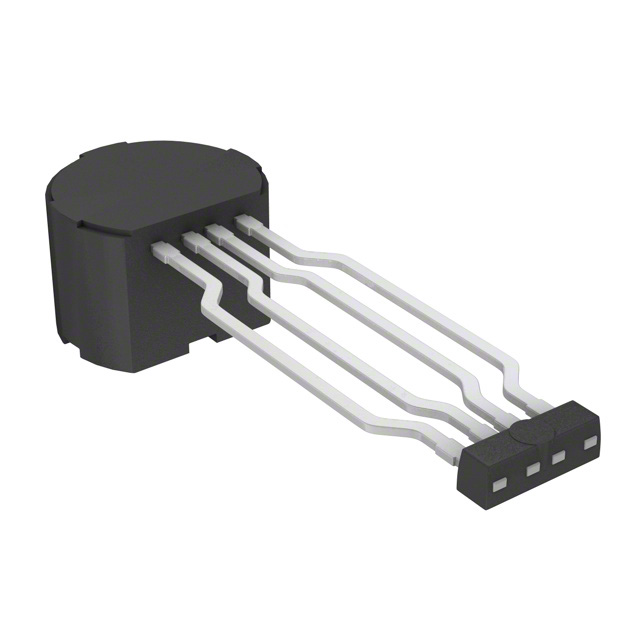

ATS674LSETN-LT-T
MAGNETIC SWITCH SPEC PURP 4SIPManufacturer: Allegro MicroSystems
Categories: Switches (Solid State)
Quality Control: Learn More
Allegro MicroSystems ATS674LSETN-LT-T is a Hall effect sensor featuring a push-pull output designed for specialized applications. This automotive-grade digital switch operates within a wide supply voltage range of 3.3V to 26.5V, with a maximum supply current of 11mA and a maximum output current of 20mA. The device exhibits a 30% trip and 40% release sensing range, responding to the north pole. Packaged in a 4-SIP Formed Leads (4-SSIP) for through-hole mounting, the ATS674LSETN-LT-T is qualified to AEC-Q100 standards. Its operating temperature range is -40°C to 150°C. This component is commonly utilized in automotive systems, including position sensing for actuators, seat position, and window lift mechanisms. The device is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SSIP Formed Leads |
| Output Type | Push-Pull |
| Polarization | North Pole |
| Mounting Type | Through Hole |
| Function | Special Purpose |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 3.3V ~ 26.5V |
| Technology | Hall Effect |
| Sensing Range | 30% Trip, 40% Release |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 11mA |
| Supplier Device Package | 4-SIP |
| Test Condition | 25°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
