ATS673LSETN-LT
MAGNETIC SWITCH SPEC PURP 4SIPManufacturer: Allegro MicroSystems
Categories: Switches (Solid State)
Quality Control: Learn More

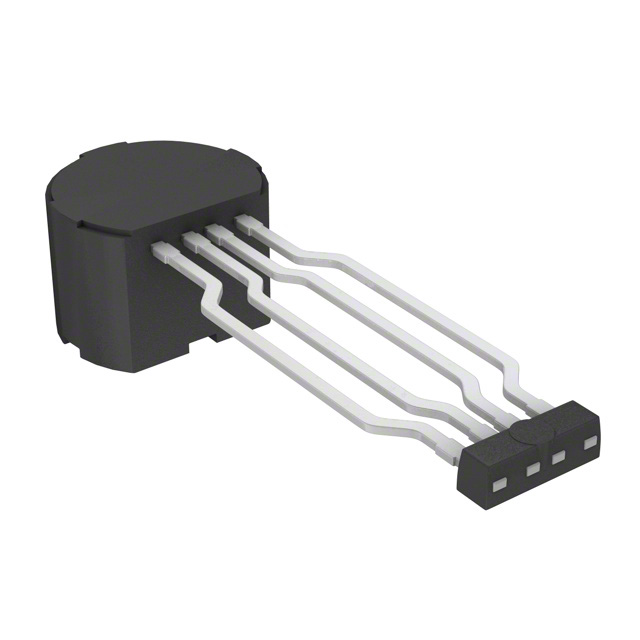

Allegro MicroSystems' ATS673LSETN-LT is a digital Hall effect sensor featuring a push-pull output. This special-purpose switch operates across a wide temperature range of -40°C to 150°C, making it suitable for demanding automotive applications. The device is qualified to AEC-Q100 standards. Its sensing mechanism is characterized by a 40% trip point and a 50% release point, triggered by a North pole magnetic field. The ATS673LSETN-LT is supplied in a 4-SIP package with formed leads, designed for through-hole mounting. It requires a supply voltage from 3.3V to 26.5V and has a maximum output current of 20mA with a supply current of 11mA. This component is commonly utilized in position sensing and speed detection applications within the automotive sector. The device is provided in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SSIP Formed Leads |
| Output Type | Push-Pull |
| Polarization | North Pole |
| Mounting Type | Through Hole |
| Function | Special Purpose |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 3.3V ~ 26.5V |
| Technology | Hall Effect |
| Sensing Range | 40% Trip, 50% Release |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 11mA |
| Supplier Device Package | 4-SIP |
| Test Condition | 25°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
