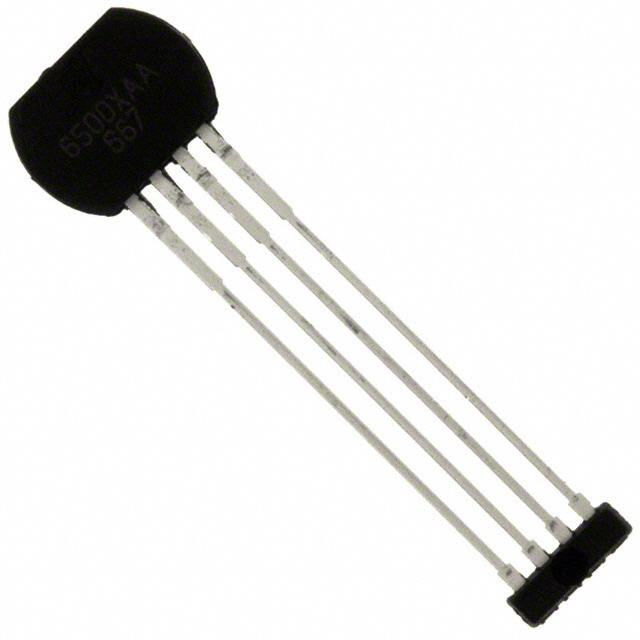

ATS625LSGTN
MAGNETIC SWITCH SPEC PURP 4SIPManufacturer: Allegro MicroSystems
Categories: Switches (Solid State)
Quality Control: Learn More
Allegro MicroSystems ATS625LSGTN is a Hall Effect magnetic switch featuring an open-collector output. This automotive-grade component, qualified to AEC-Q100 standards, operates within a 4V to 24V supply voltage range, drawing a maximum of 14mA. Its specialized function is characterized by temperature compensation and a sensing range of 60% trip and 40% release. Designed for through-hole mounting, it is supplied in a 4-SIP package, presented on tape and reel. The ATS625LSGTN is suitable for applications requiring precise magnetic sensing, including automotive systems and industrial automation. It is optimized for detecting magnetic field polarity, specifically responding to the South pole.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SSIP |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Through Hole |
| Function | Special Purpose |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 4V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 60% Trip, 40% Release |
| Current - Output (Max) | 10mA |
| Current - Supply (Max) | 14mA |
| Supplier Device Package | 4-SIP |
| Test Condition | 25°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
