APS12235LUAABU
MAGNETIC SWITCH LATCH 3SIPManufacturer: Allegro MicroSystems
Categories: Switches (Solid State)
Quality Control: Learn More

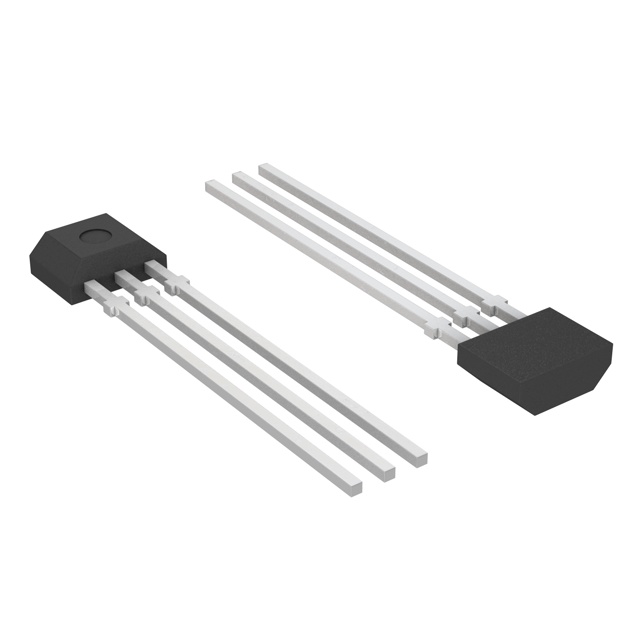

Allegro MicroSystems APS12235LUAABU is a Hall effect digital switch with an analog voltage output, operating as a latching sensor. This AEC-Q100 qualified component is designed for automotive applications, featuring a 3-SIP package suitable for through-hole mounting. The device offers amplified output and is sensitive to both north and south poles, with a typical trip point of 18mT and release point of 18mT. It operates within a supply voltage range of 2.8V to 5.5V and has a maximum output current of 60mA and a maximum supply current of 4mA. The operating temperature range is specified from -40°C to 150°C (TA). This component finds utility in automotive systems requiring precise magnetic field detection and switching.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output |
| Packaging | Bulk |
| Package / Case | 3-SSIP |
| Output Type | Analog Voltage |
| Polarization | North Pole, South Pole |
| Mounting Type | Through Hole |
| Function | Latch |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 2.8V ~ 5.5V |
| Technology | Hall Effect |
| Sensing Range | -18mT Trip, 18mT Release |
| Current - Output (Max) | 60mA |
| Current - Supply (Max) | 4mA |
| Supplier Device Package | 3-SIP |
| Test Condition | -40°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
