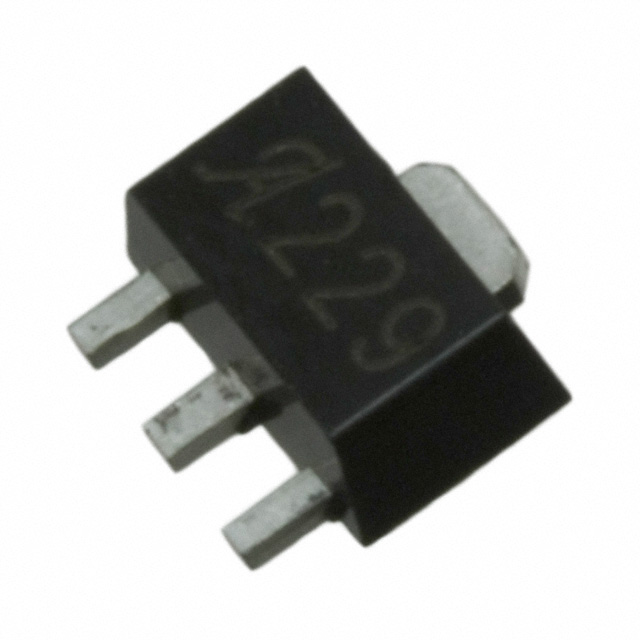

A1225LLTTK-T

MAGNETIC SWITCH LATCH SOT89-3

Manufacturer: Allegro MicroSystems

Categories: Switches (Solid State)

Quality Control: Learn More

Allegro MicroSystems A1225LLTTK-T is a digital Hall effect latch sensor designed for precise magnetic field detection. This component, housed in a SOT-89-3 package, features an open-drain output with a maximum output current of 25mA and a maximum supply current of 6mA. The device operates from a 3.8V to 24V supply voltage and offers temperature compensation for reliable performance across its operating temperature range of -40°C to 150°C. Its latching function requires a south pole magnetic field for activation, with a trip point of 17.5mT and a release point of -17.5mT. The A1225LLTTK-T is commonly utilized in automotive applications, industrial controls, and consumer electronics requiring robust position sensing and speed detection. It is supplied on tape and reel.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
FeaturesTemperature Compensated
PackagingTape & Reel (TR)
Package / CaseTO-243AA
Output TypeOpen Drain
PolarizationSouth Pole
Mounting TypeSurface Mount
FunctionLatch
Operating Temperature-40°C ~ 150°C (TA)
Voltage - Supply3.8V ~ 24V
TechnologyHall Effect
Sensing Range17.5mT Trip, -17.5mT Release
Current - Output (Max)25mA
Current - Supply (Max)6mA
Supplier Device PackageSOT-89-3
Test Condition-40°C ~ 150°C
