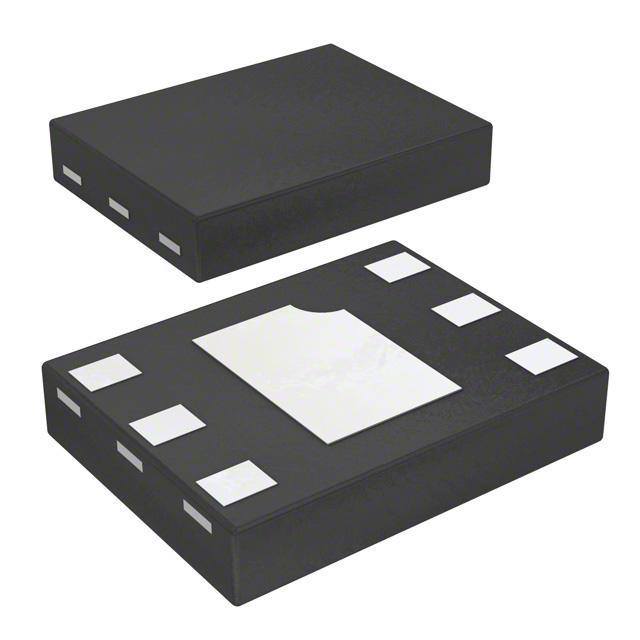

A1174EEWLT-P
MAGNETIC SWITCH LATCH 6DFN/MLPManufacturer: Allegro MicroSystems
Categories: Switches (Solid State)
Quality Control: Learn More
Allegro MicroSystems A1174EEWLT-P is a Hall Effect latching unipolar digital switch. This device features a push-pull output stage and is designed for operation with a supply voltage range of 1.65V to 3.5V. The A1174EEWLT-P exhibits a typical operating current of 2mA and an output current capability of up to 1mA. Its sensing characteristics include a trip field of 5.5mT and a release field of -5.5mT, with operation specified for the South pole. Supplied in a 6-DFN/MLP (1.5x2) package, it utilizes surface mount technology and is available on tape and reel. The component operates within an ambient temperature range of -40°C to 85°C. This Hall Effect latch is commonly employed in automotive and industrial applications requiring robust magnetic sensing solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN Exposed Pad |
| Output Type | Push-Pull |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Latch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 3.5V |
| Technology | Hall Effect |
| Sensing Range | 5.5mT Trip, -5.5mT Release |
| Current - Output (Max) | 1mA |
| Current - Supply (Max) | 2mA |
| Supplier Device Package | 6-DFN/MLP (1.5x2) |
| Test Condition | -40°C ~ 85°C |
