A1160LLHLX-T

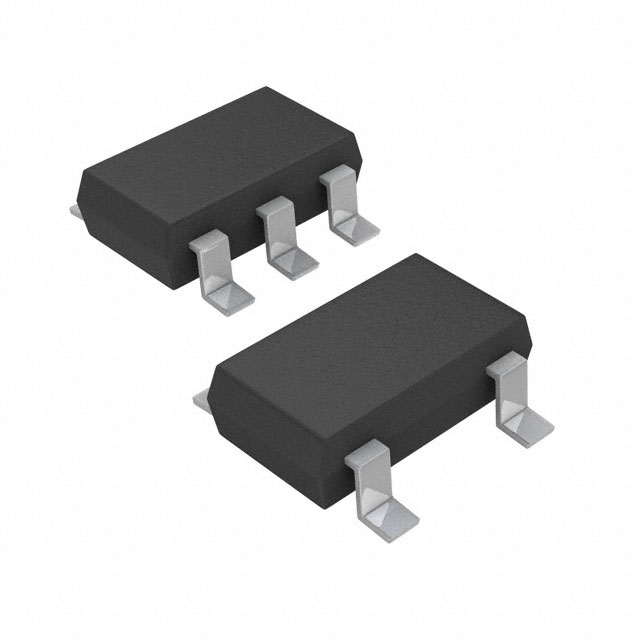

MAGNETIC SWITCH UNIPOL SOT23W-5Manufacturer: Allegro MicroSystems
Categories: Switches (Solid State)
Quality Control: Learn More
The Allegro MicroSystems A1160LLHLX-T is a unipolar Hall effect switch designed for automotive applications. This digital switch features an open-drain output and is qualified to AEC-Q100 standards, ensuring reliability in demanding environments. It operates with a supply voltage range of 3.8V to 24V and a maximum supply current of 5mA. The device offers a typical trip field of 24.5mT and a release field of 6mT, responding to the south pole of a magnetic field. With a maximum output current of 25mA, it is suitable for various sensorless motor control, position detection, and speed sensing applications in the automotive sector. The A1160LLHLX-T is supplied in a SOT-23W-5 package and is provided on tape and reel. Its operating temperature range is from -40°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Output Type | Open Drain |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Unipolar Switch |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 3.8V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 24.5mT Trip, 6mT Release |
| Current - Output (Max) | 25mA |
| Current - Supply (Max) | 5mA |
| Supplier Device Package | SOT-23W-5 |
| Test Condition | -40°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
