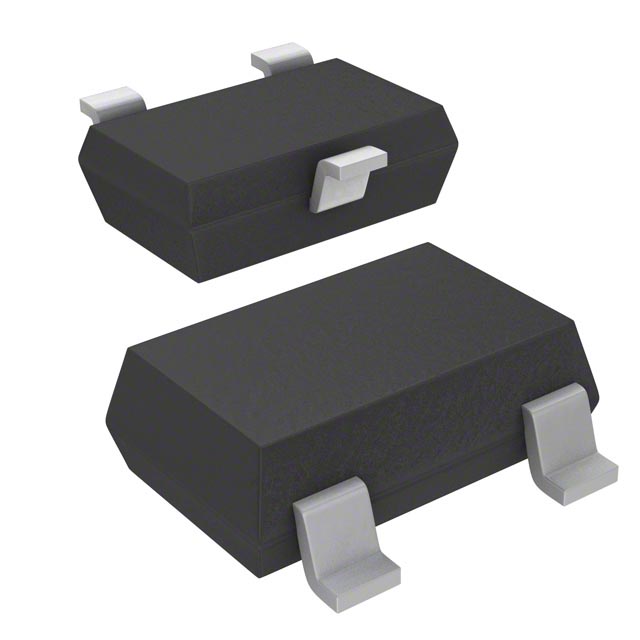

A1153LLHLX-F-T
MAGNETIC SWITCH UNIPOLAR SOT23WManufacturer: Allegro MicroSystems
Categories: Switches (Solid State)
Quality Control: Learn More
The Allegro MicroSystems A1153LLHLX-F-T is a unipolar Hall effect switch designed for demanding applications. This digital switch features a current source output and operates with a supply voltage ranging from 3V to 24V. Its sensing capabilities include an 11mT trip point and a 4.5mT release point, with polarization sensitive to the south pole. The component is housed in a compact SOT-23W package, suitable for surface mounting. Qualified to AEC-Q100 standards and rated for an operating temperature range of -40°C to 150°C, this device is engineered for reliability in automotive and industrial environments. The A1153LLHLX-F-T is supplied in tape and reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23W |
| Output Type | Current Source |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Unipolar Switch |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 3V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 11mT Trip, 4.5mT Release |
| Current - Output (Max) | - |
| Current - Supply (Max) | 17mA |
| Supplier Device Package | SOT-23W |
| Test Condition | -40°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
