A4916KJPTR-T-1
IC MOTOR DRVR MULTIPHASE 48LQFPManufacturer: Allegro MicroSystems
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Allegro MicroSystems presents the A4915KJPTR-T-1, a multiphase motor driver IC designed for demanding applications. This fully integrated component combines control and power stages, featuring an NMOS technology architecture. The A4915KJPTR-T-1 supports brushless DC (BLDC) and multiphase stepper motor types, offering a robust solution for complex motion control. Its interface capability is SPI, ensuring efficient communication within automotive systems. The device is housed in a 48-LQFP-EP (7x7) package, suitable for surface mount applications. Operating within a temperature range of -40°C to 150°C, this driver is engineered for reliability in harsh environments. The output configuration includes three half-bridge drivers, providing flexibility for various motor drive topologies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

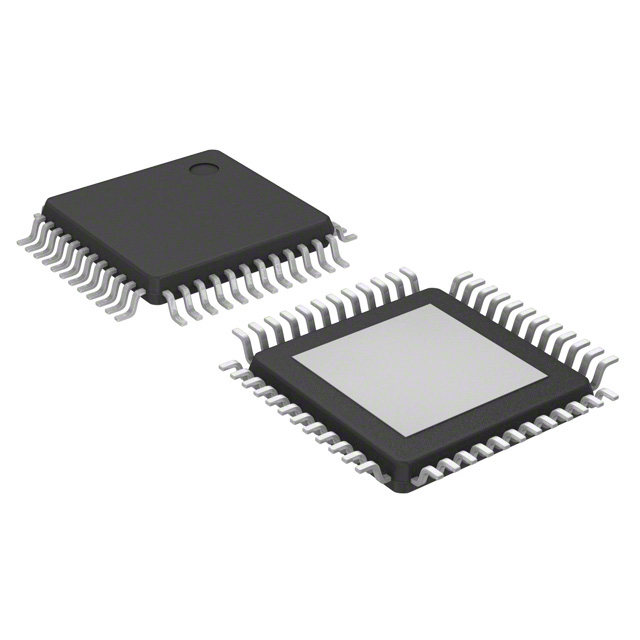

| Package / Case | 48-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | - |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | - |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | - |
| Supplier Device Package | 48-LQFP-EP (7x7) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
