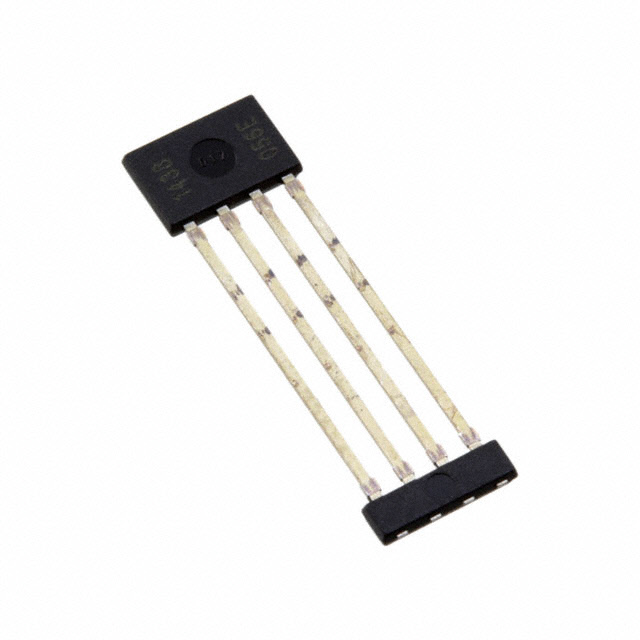

A1360LKTTN-T
SENSOR HALL EFFECT ANALOG 4SIPManufacturer: Allegro MicroSystems
Categories: Linear, Compass (ICs)
Quality Control: Learn More
Allegro MicroSystems A1360LKTTN-T is a single-axis, temperature-compensated Hall effect sensor with an analog voltage output. This device, packaged in a 4-SIP module, is designed for linear output proportional to magnetic flux density. It features a wide operating temperature range of -40°C to 150°C and operates from a supply voltage of 4.5V to 5.5V. With a maximum output current of 10mA and a supply current of 12mA, it offers a bandwidth of 50kHz. The through-hole mounting type and programmable features make it suitable for applications in automotive, industrial, and consumer electronics where precise magnetic field sensing is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Programmable, Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Axis | Single |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Bandwidth | 50kHz |
| Technology | Hall Effect |
| Resolution | - |
| Sensing Range | - |
| Current - Output (Max) | 10mA |
| Current - Supply (Max) | 12mA |
| Supplier Device Package | 4-SIP |
