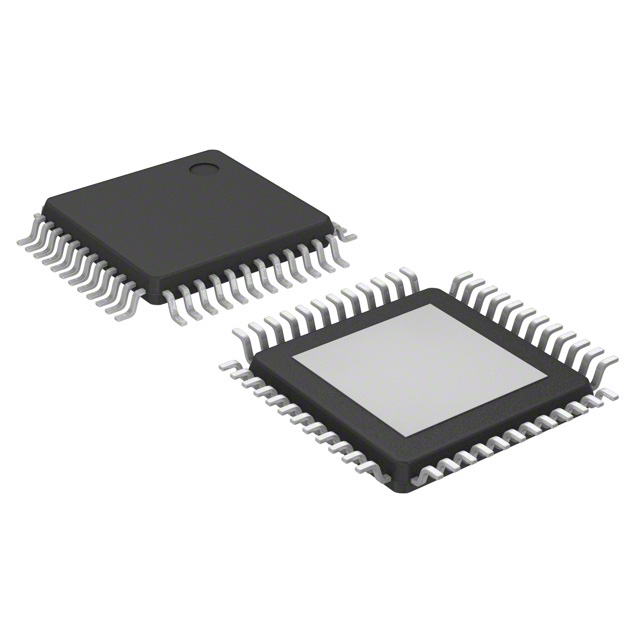

AMT49101KJPTR-B-5
IC GATE DRVR HALF-BRIDGE 48LQFPManufacturer: Allegro MicroSystems
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Non-Inverting 48-LQFP-EP (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 48-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 5V ~ 80V |
| Input Type | Non-Inverting |
| Supplier Device Package | 48-LQFP-EP (7x7) |
| Rise / Fall Time (Typ) | - |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 6 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.5V, 3.5V |
| Current - Peak Output (Source, Sink) | 2.4A, 4.2A |
| Grade | Automotive |
| Qualification | AEC-Q100 |
