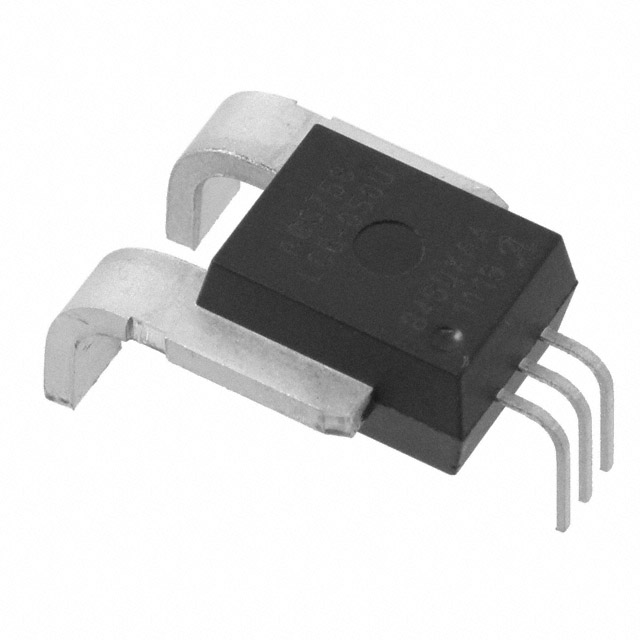

ACS770LCB-100U-PSF-T

LINEAR CURRENT SENSOR

Manufacturer: Allegro MicroSystems

Categories: Current Sensors

Quality Control: Learn More

Allegro MicroSystems ACS770 Series linear current sensor, part number ACS770LCB-100U-PSF-T, provides precise DC current sensing up to 100A. This Hall effect, open-loop unidirectional sensor offers a typical accuracy of ±0.6% and linearity of ±1% over its operating temperature range of -40°C to 150°C. The output signal is ratiometric and voltage-based, with a sensitivity of 40mV/A. Designed for through-hole mounting, the 5-CB Formed Leads, PSF package facilitates integration into demanding applications. The device operates with a supply voltage of 5V and a maximum supply current of 15mA, supporting frequencies from DC up to 120kHz. This component is suitable for applications in electric vehicle charging, industrial automation, and power supply monitoring.

Additional Information

Series: ACS770RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: UnknownPackaging: TubeDatasheet:
Technical Details:
PackagingTube
Package / Case5-CB Formed Leads, PSF
PolarizationUnidirectional
Sensitivity40mV/A
Mounting TypeThrough Hole
OutputRatiometric, Voltage
FrequencyDC ~ 120kHz
Accuracy±0.6%
Operating Temperature-40°C ~ 150°C
Voltage - Supply5V
Response Time4.6µs
Sensor TypeHall Effect, Open Loop
Linearity±1%
For MeasuringDC
Current - Supply (Max)15mA
Current - Sensing100A
Supplier Device Package5-CB Module
Number of Channels1
