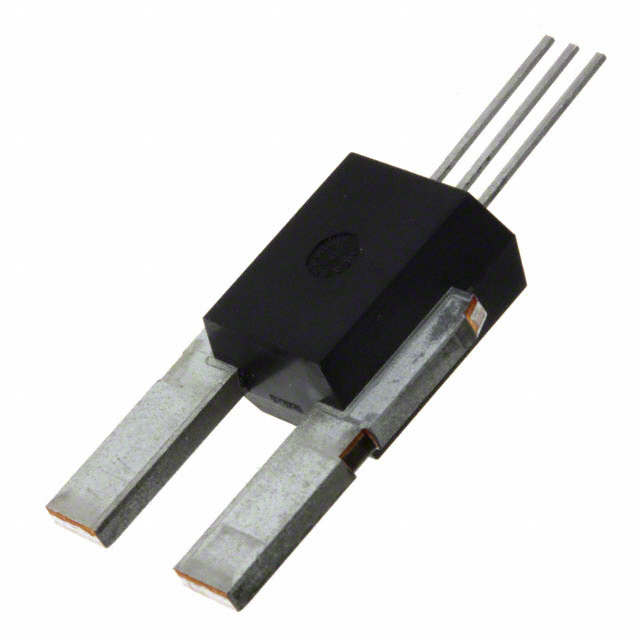

ACS754SCB-150-PSS
SENSOR CURRENT HALL 150A AC/DCManufacturer: Allegro MicroSystems
Categories: Current Sensors
Quality Control: Learn More
Allegro MicroSystems ACS754SCB-150-PSS is a single-channel, open-loop Hall effect current sensor designed for bidirectional AC and DC current sensing up to 150A. This device offers a nominal sensitivity of 13.3mV/A with ±1% accuracy and ±0.8% linearity. Operating from a single 5V supply, it draws a maximum of 10mA of quiescent current. The sensor features a ratiometric voltage output and a fast response time of 11µs, with a usable frequency range from DC to 35kHz. Its 5-CB Straight Leads, PSS package is designed for through-hole mounting. The ACS754SCB-150-PSS is suitable for applications in industrial automation, electric vehicle charging, power supply monitoring, and motor control systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 5-CB Straight Leads, PSS |
| Polarization | Bidirectional |
| Sensitivity | 13.3mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 35kHz |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 5V |
| Response Time | 11µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.8% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 10mA |
| Current - Sensing | 150A |
| Supplier Device Package | 5-CB Module |
| Number of Channels | 1 |
