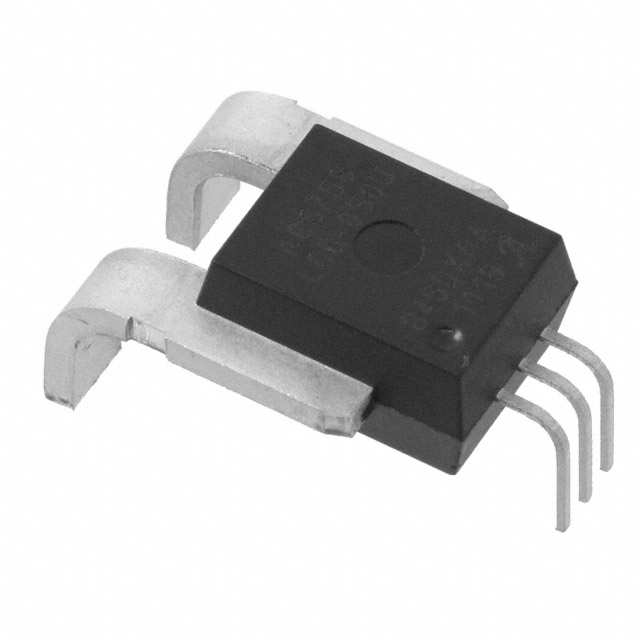

ACS754SCB-130-PFF
SENSOR CURRENT HALL 130A AC/DCManufacturer: Allegro MicroSystems
Categories: Current Sensors
Quality Control: Learn More
Allegro MicroSystems ACS754SCB-130-PFF is a 130A, open-loop, bidirectional Hall Effect current sensor. This single-channel device provides ratiometric voltage output proportional to the sensed current, with a sensitivity of 15mV/A. Designed for AC/DC current measurements, it offers a wide frequency response from DC up to 35kHz. Key performance metrics include ±1% typical accuracy and ±0.8% linearity. The sensor operates from a 5V supply with a maximum quiescent current of 10mA. Its 11µs response time and robust design make it suitable for applications in industrial automation, power systems, and electric vehicle power management. The ACS754SCB-130-PFF is housed in a 5-CB Formed Leads, PFF package for through-hole mounting.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 5-CB Formed Leads, PFF |
| Polarization | Bidirectional |
| Sensitivity | 15mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 35kHz |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 5V |
| Response Time | 11µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.8% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 10mA |
| Current - Sensing | 130A |
| Supplier Device Package | 5-CB Module |
| Number of Channels | 1 |
