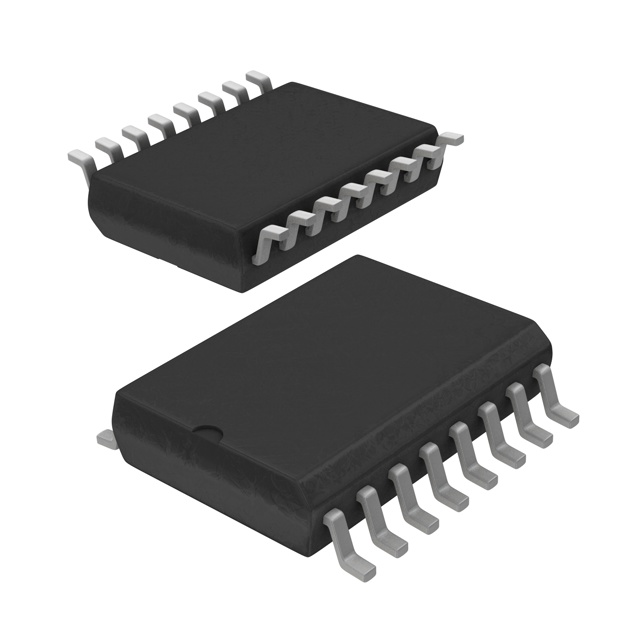

ACS720KLATR-15AB-T-4
HIGH ACCURACY DUAL FAULT OUTPUTManufacturer: Allegro MicroSystems
Categories: Current Sensors
Quality Control: Learn More
Current Sensor ±15A 1 Channel Hall Effect Bidirectional 16-PowerSOIC (0.295"", 7.50mm Width)
Additional Information
Series: ACS720RoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-PowerSOIC (0.295"", 7.50mm Width) |
| Polarization | Bidirectional |
| Sensitivity | 90mV/A |
| Mounting Type | Surface Mount |
| Output | Ratiometric, Current |
| Frequency | DC ~ 120kHz |
| Accuracy | ±1.6% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 4µs |
| Sensor Type | Hall Effect |
| Linearity | ±0.75% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 16mA |
| Current - Sensing | ±15A |
| Supplier Device Package | 16-SOIC |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
