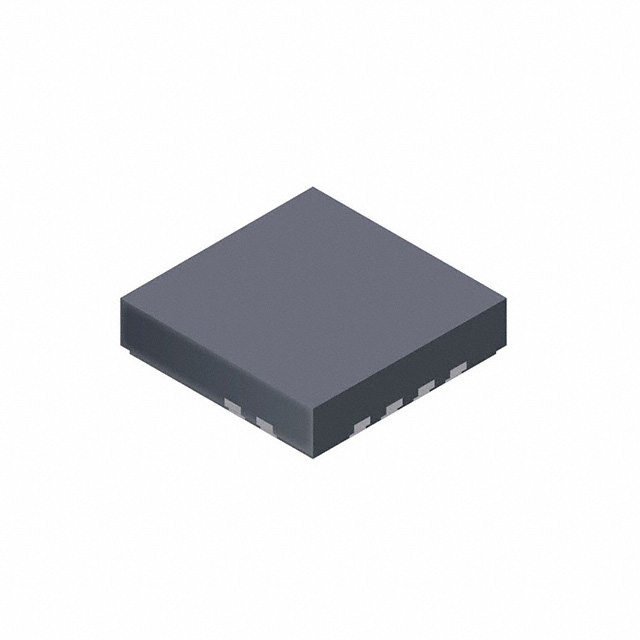

ACS71240KEXBLT-020B5
CURRENT SENSOR IC WITH COMMON MOManufacturer: Allegro MicroSystems
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 12-PowerWFQFN
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-PowerWFQFN |
| Polarization | Bidirectional |
| Sensitivity | 100mV/A |
| Mounting Type | Surface Mount, Wettable Flank |
| Output | Analog Voltage |
| Frequency | DC ~ 120kHz |
| Accuracy | ±6% |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 4µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 12mA |
| Current - Sensing | 20A |
| Supplier Device Package | 12-QFN (3x3) |
| Grade | Automotive |
| Number of Channels | 1 |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy
ACS725LLCTR-30AU-S
3.3V VCC ISOLATED CURRENT SENSOR
ACS725LLCTR-30AB-S
3.3V VCC ISOLATED CURRENT SENSOR

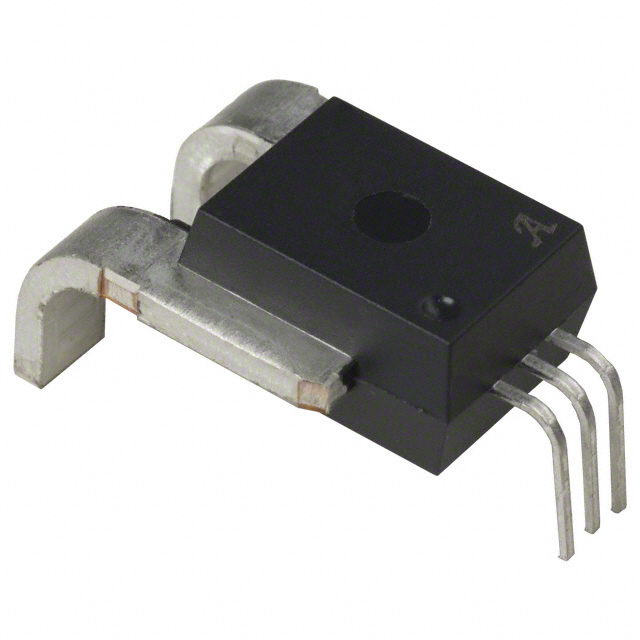

ACS750LCA-050
