ACS37612LLUALU-015U5
SENSOR CUR HALL 26.5MT 8TSSOPManufacturer: Allegro MicroSystems
Categories: Current Sensors
Quality Control: Learn More

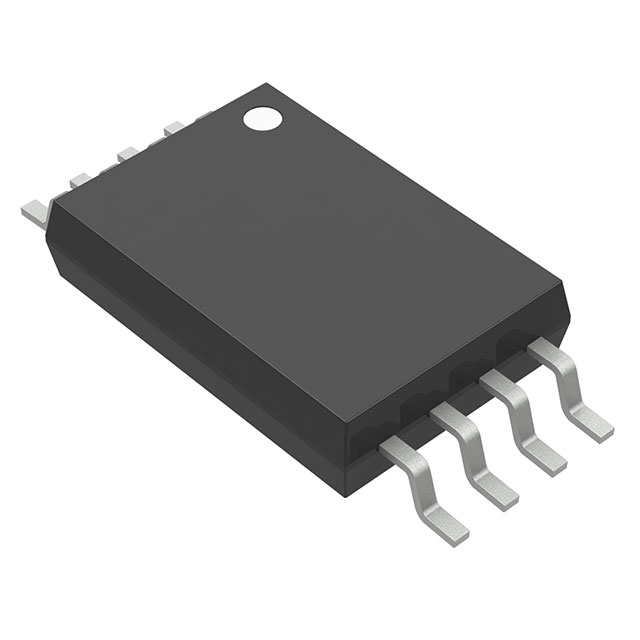

Current Sensor 26.5mT 1 Channel Hall Effect Unidirectional 8-TSSOP (0.173"", 4.40mm Width)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Polarization | Unidirectional |
| Sensitivity | 15mV/g |
| Mounting Type | Surface Mount |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 120kHz |
| Accuracy | ±2% |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Sensor Type | Hall Effect |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 16mA |
| Current - Sensing | 26.5mT |
| Supplier Device Package | 8-TSSOP |
| Grade | Automotive |
| Number of Channels | 1 |
| Qualification | AEC-Q100 |
