SQF-C8ME4-960GDEEC
930L-D SERIES PCIE/NVME GEN.4 X4Manufacturer: Advantech Corp
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

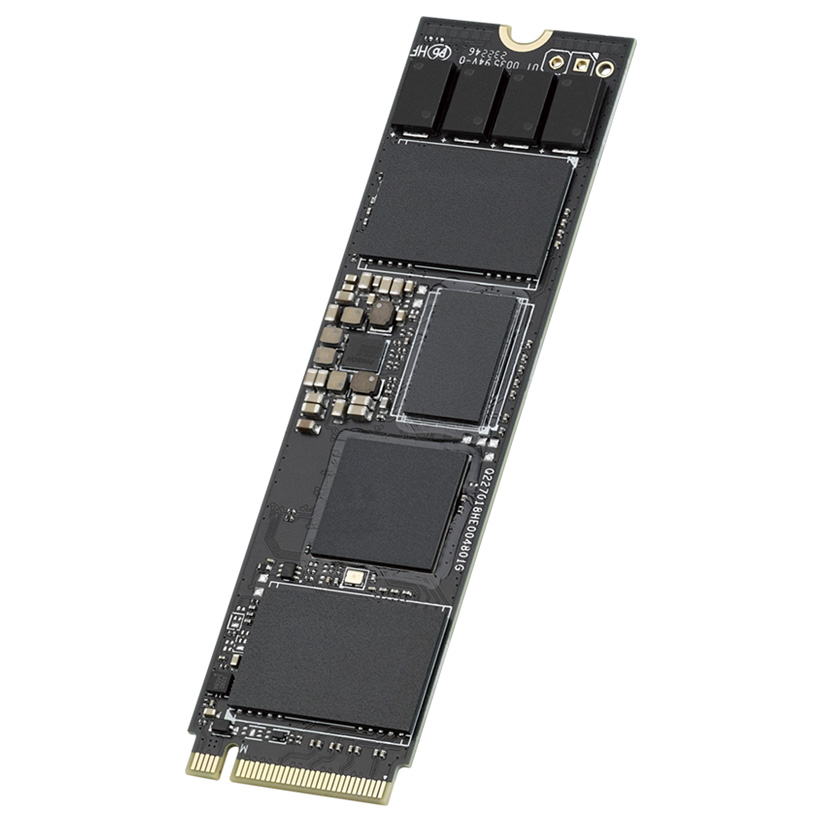

Advantech Corp's SQF-C8ME4-960GDEEC is a 960GB NVMe PCIe M.2 M Key Solid State Drive featuring TLC NAND flash memory. This component utilizes PCIe Gen.4 x4 interface technology, delivering sequential read speeds of up to 5.5GB/s and sequential write speeds of up to 1.4GB/s. Operating at a 3.3V supply voltage, it adheres to an M.2 M Key form factor with dimensions of 80.00mm x 22.00mm x 3.80mm. The SQF-C8ME4-960GDEEC is suitable for applications in industrial computing, embedded systems, and data acquisition where high-speed storage and reliable performance are critical. It is supplied in bulk packaging and operates within a temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 80.00mm x 22.00mm x 3.80mm |
| Memory Size | 960GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Type | NVMe PCIe |
| Weight | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Current - Max | - |
| Form Factor | M.2 M Key |
| Speed - Read | 5.5GB/s |
| Speed - Write | 1.4GB/s |
