96ND500G-ST-SG5KG
HDD 500GB 2.5"" SATA III 5VManufacturer: Advantech Corp
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

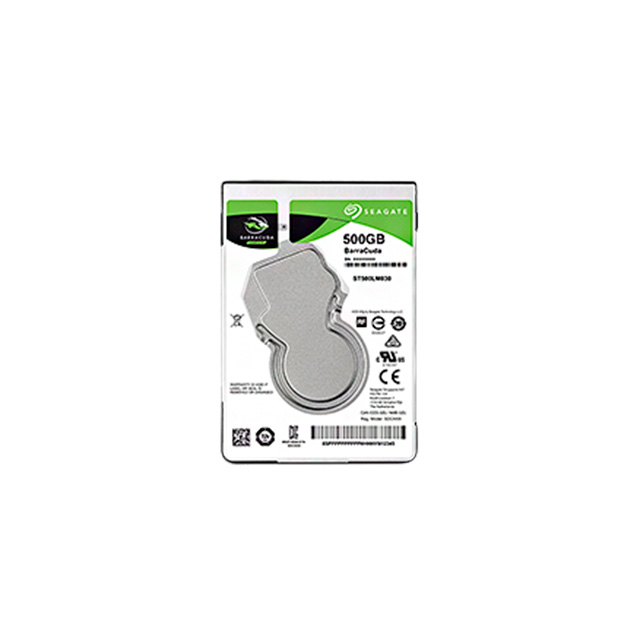

Advantech Corp 96ND500G-ST-SG5KG is a 500GB magnetic disk drive, adhering to the SATA III interface standard. This 2.5-inch form factor drive operates at 5V with a maximum current draw of 1A. It offers consistent read and write speeds of 140MB/s, making it suitable for applications demanding reliable data storage. The drive's dimensions are 100.35mm x 69.85mm x 7.00mm, with a weight of 85.49g. Operating within a temperature range of 0°C to 60°C, this component is typically found in industrial computing, embedded systems, and data acquisition applications. The 96ND500G-ST-SG5KG is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 100.35mm x 69.85mm x 7.00mm |
| Memory Size | 500GB |
| Memory Type | Magnetic Disk (HDD) |
| Type | SATA III |
| Weight | 3 oz (85.49 g) |
| Operating Temperature | 0°C ~ 60°C |
| Voltage - Supply | 5V |
| Current - Max | 1A |
| Form Factor | 2.5"" |
| Speed - Read | 140MB/s |
| Speed - Write | 140MB/s |
