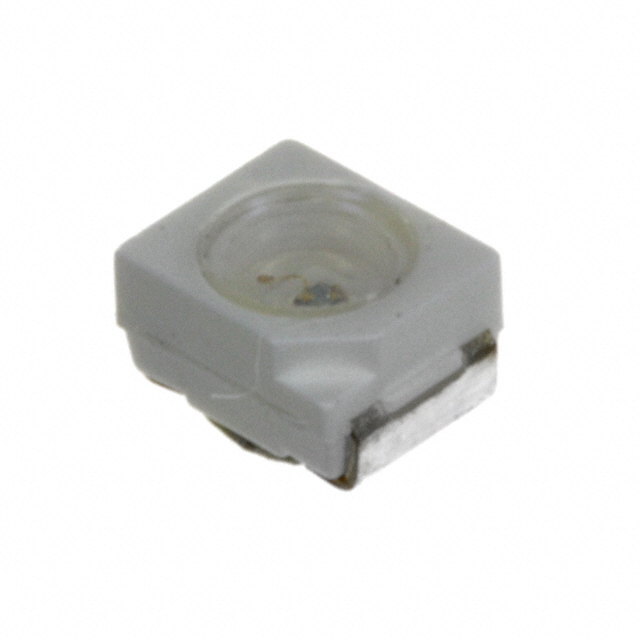

PDU-G106B-SM
SENSOR PHOTODIODE 200-320NM SMDManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix PDU-G106B-SM is a surface mount photodiode with a spectral range of 200nm to 320nm, ideal for UV detection applications. This component features a fast 10ns response time and a typcial dark current of 50µA. The active area measures 0.076mm². With a maximum reverse voltage of 5V and an operating temperature range of -30°C to 85°C, the PDU-G106B-SM is suitable for use in analytical instrumentation, UV curing systems, and medical equipment. Its responsivity is 0.1 A/W at 350nm. Packaging is provided in bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | - |
| Mounting Type | Surface Mount |
| Diode Type | - |
| Operating Temperature | -30°C ~ 85°C |
| Response Time | 10ns |
| Viewing Angle | - |
| Spectral Range | 200nm ~ 320nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.1 A/W @ 350nm |
| Active Area | 0.076mm² |
| Current - Dark (Typ) | 50µA |
| Voltage - DC Reverse (Vr) (Max) | 5 V |
