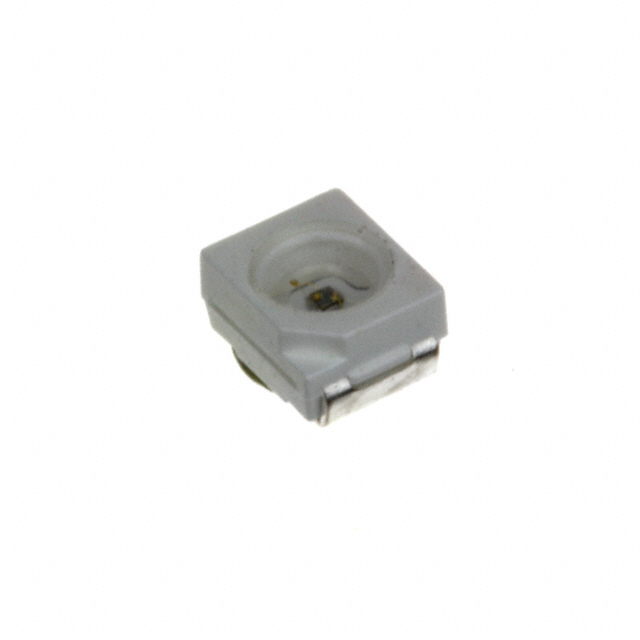

PDU-G105A-SM
SENSOR PHOTODIODE 200-365NM SMDManufacturer: Advanced Photonix
Categories: Photodiodes
Quality Control: Learn More
Advanced Photonix PDU-G105A-SM is a surface mount photodiode with a spectral range of 200nm to 365nm. This component features a fast response time of 10ns, enabling rapid signal detection. The dark current is typically 50µA, and it operates with a maximum reverse voltage of 5V. The active area measures 0.076mm². Responsivity is rated at 0.1 A/W at 350nm. The PDU-G105A-SM is suitable for applications requiring UV spectral sensitivity, commonly found in analytical instrumentation, UV curing systems, and safety monitoring equipment. It is supplied in bulk packaging and operates within an ambient temperature range of -30°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | - |
| Mounting Type | Surface Mount |
| Diode Type | - |
| Operating Temperature | -30°C ~ 85°C |
| Response Time | 10ns |
| Viewing Angle | - |
| Spectral Range | 200nm ~ 365nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.1 A/W @ 350nm |
| Active Area | 0.076mm² |
| Current - Dark (Typ) | 50µA |
| Voltage - DC Reverse (Vr) (Max) | 5 V |
